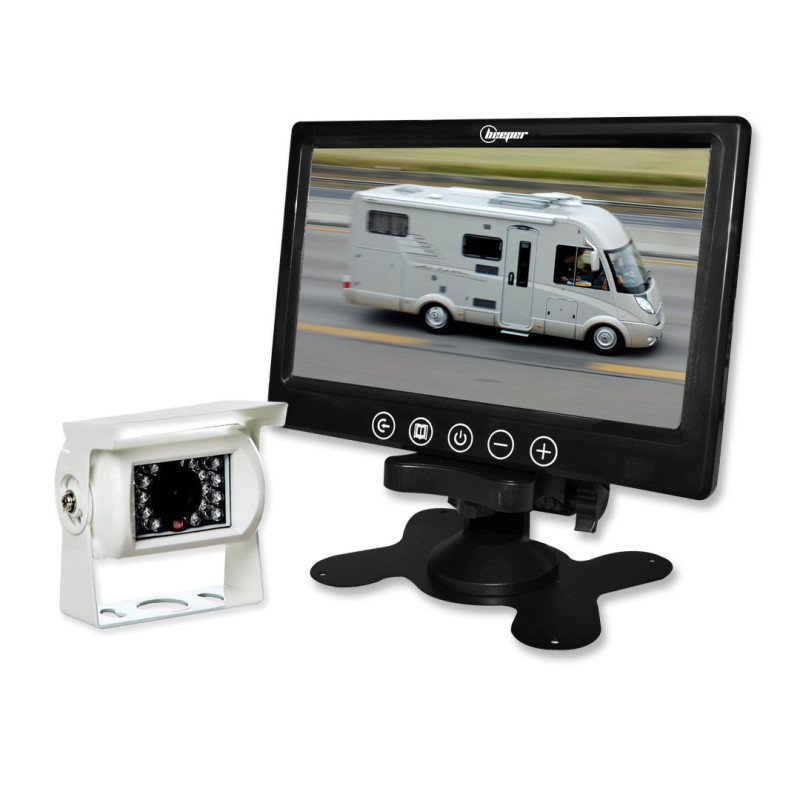

Reversing video kit • 7'' LCD screen • 1 camera on support • 15m cables • RWEC79X
Economical & easy to install, the BEEPER RWEC79X is an ideal kit for motorhomes. Its white camera fits perfectly on your vehicle and its 7'' screen offers you a comfort of vision, to back up safely.
Composition of the RWEC79X reversing video kit
The RWEC79X reversing video kit contains :
- A 7" LCD screen (16:9)- An adjustable screen support- 18 LED IR camera- Video connection cable- 12m extension cable- Camera power cableMain functions
• Screen :
- 7" LCD screen (16:9)-PAL & NTSC system- 800 x 480 px resolution- 2 video inputs- DC 12-24V power supply- Operating temperature-10°C to +65°C- Storage temperature -30°C to +80°C- Power consumption 3-5W max.• Camera :
- 140° angle- PAL & NTSC system- Night vision 18 IR LEDs (0,2 lumens min)- Power consumption 300 mA- DC 12-24V power supply- Operating temperature -20°C to +70°C- Storage temperature -40°C to +85°CInstallation of the reversing/rear view camera
Vision in reversing video
When using reversing video, please make sure that you connect your product to a +12/24V reversing light. In this case, the product will activate automatically as soon as the vehicle is put into reverse gear.
Vision in retrovision
If you are using the product for surveillance, make sure you connect it to a +12/24V after contact. In this case, the product will be activated as soon as the vehicle is switched on.
Night vision
The camera in the BEEPER RWEC79X is equipped with 18 LEDS infrared LEDs at the rear, which have the ability to detect the level of light, thus making it possible to provide the best possible night vision.
Please note that the operation of the LEDs is not perceptible to the naked eye.
These LEDs are a real asset for night vision, but they can sometimes distort the real colours of surrounding objects or obstacles (e.g. pinky vegetation). However, this constraint remains negligible compared to the overall performance of the product.
Distance visualisation templates
Distance visualization template lines appear on the screen, which allow the best evaluation of the distances between the vehicle and the obstacle. These template lines can be deactivated when the product is installed if desired.
Screen functions
Possible settings : Brightness, contrast, colour, language selection, mode.
A) AV2 • AV2 / Camera 1 or 2 selection (if installed)
B) Access to the menu
C) Power On/Off
D) Lower & Volume -
E) Increase & Volume +
Dimensions :
WARNING • VEHICLES THAT DO NOT ALLOW AN APPLIANCE TO BE CONNECTED TO THE REVERSING LIGHT HARNESSOn certain vehicles the +12 V reversing light is interfered with when the engine is running which can disturb the correct operation of the reversing radar kit. In other cases, this +12 V reversing Light does not allow any additional appliance. For all these vehicles, Beeper has developed the RCANR2 module in order to retrieve the +12V Reversing Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and provides a +12V Reversing Light for the connection of a reversing camera. You will find this RCANR2 canbus module by clicking HEREThe BEEPER RWEC79X is of course a complete kit, delivered with all the accessories necessary for the assembly, as well as a simple and clear assembly instructions.
