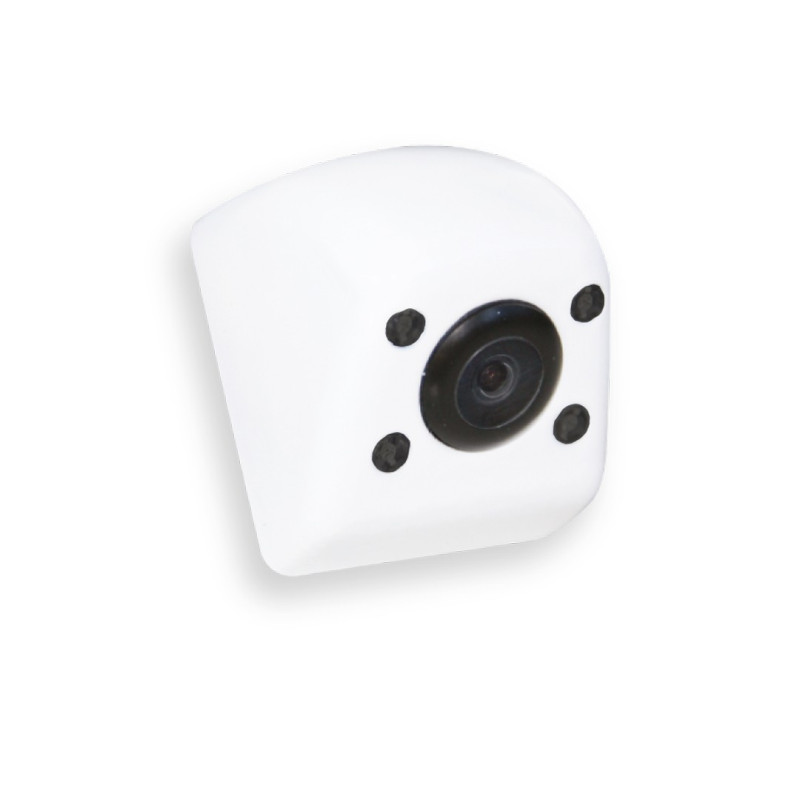

White "wide angle" IR micro-camera • RX-399-IR

DIMENSIONS

KIT CONTENTS

Your RX-399-IR kit is composed of :

- 1 white micro-camera with 4 IR LEDs (cable length = 2 m)

- 1 barrel/4 pin adapter of 54 cm

- 1 fixing adhesive

- 1 screw kit (nut, lock nut, washer)

/! Please note that the camera only has a length of 2 m and a 54 cm adapter. We advise you to equip yourself with an additional extension cable to connect it to a monitor (ref. RX-45/5, RX-45/15, RX-45/20).

FEATURES

• 170° viewing angle
• IP67 waterproof rating
• PAL/NTSC system
• Night vision 0 lumen min.
• 4 IR LEDs (distance 8 meters)
• Power supply DC 12~24V
• Consumption 60 mA
• Operating temperature -20°C / +70°C

CAMERA FUNCTIONS

Green loop = Mirror effect
To reverse the horizontal orientation of the camera (left/right), the green loop on the camera must be cut.

Blue loop = Image inversion
To reverse the vertical orientation of the camera (up/down), the blue loop on the camera must be cut.

White loop = Template lines
• White loop closed (uncut), the limits appear on the screen.
• White loop open (cut), the limits no longer appear on the screen.

2 POSSIBLE TYPES OF INSTALLATION

You can install your camera according to 2 types of vision; vision in reversing camera & vision in rear view :
