• CC1 • Caméra de recul rétroviseur 7" cam blanche
CC1 • Caméra de recul rétroviseur 7" cam blanche

Reversing video kit with 7" rear view mirror screen (white camera) • CC1

: CC1

CC1 • Reversing video kit for motorhomes, vans and commercial vehicles with white camera

€168.90
Tax included
17 Items
Description

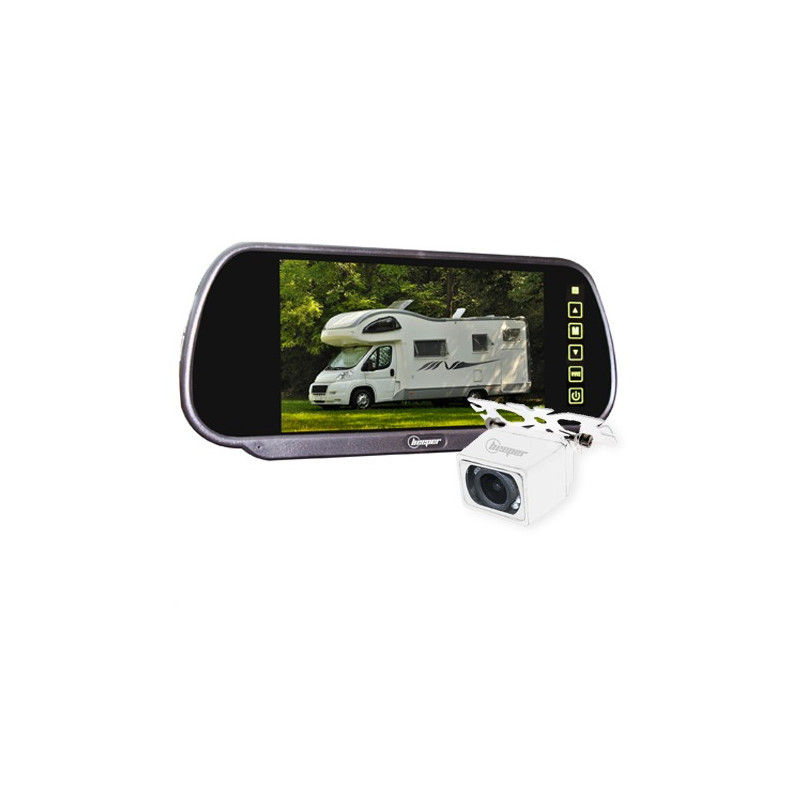

The BEEPER CC1-N is a reversing video kit with a 7" rear view mirror screen, ideal for medium to large vehicles, such as commercial vehicles and motor homes. The complete kit includes a 7" LCD rear view mirror screen, a 9 LED white camera and a 12 meter cable. The mirror screen is fitted directly to your original mirror, making installation quick, easy and discreet.

Kit composition

Main functions


• The CC1 is a reversing video kit for medium-sized vehicles (commercial vehicles, vans, motor homes, etc.)
• When reversing, the reversing video system automatically activates.
• The screen allows you to see the rear blind spot so that you can manoeuvre in reverse in complete safety.
• As soon as you stop reversing, the system is inactive.
• Different coloured template lines allow you to visualize the distances when manoeuvring.

Activating and deactivating the system

The system automatically activates when the vehicle is shifted into reverse. It deactivates automatically as soon as you switch to another gear or to neutral.

Installation of the screen in the passenger compartment



Thanks to its 7-inch LCD rear-view mirror screen, the BEEPER CC1 kit can be installed very easily and discreetly in the passenger compartment of your vehicle, guaranteeing you comfort and practicality.

Installation of the camera

The camera of the BEEPER CC1 kit can be easily installed in the location of your choice. Preferably, we advise you to mount the camera in the centre of your vehicle, at the top of the rear bodywork.

Night vision

The camera of the Beeper CC1 kit is equipped with 9 infrared LEDs, which have the ability to detect the level of light, thus providing the best possible night vision.

Please note that the operation of the LEDs is not perceptible to the naked eye.

These LEDs are a real asset for night vision, but they can sometimes distort the real colours of surrounding objects or obstacles (e.g. pink vegetation). However, this constraint remains negligible compared to the overall performances of the product.

Two types of possible visions

Screen function


SETTINGS + / MENU / SETTINGS - / VIDEO MODE / ON/OFF

Templates of distance visualisation



The CC1 reversing video kit has template lines that are superimposed on the image to ensure easy and intuitive manoeuvring.

WARNING • VEHICLES THAT DO NOT ALLOW A CONSUMER TO BE CONNECTED TO THE REVERSING LIGHT HARNESS
In some vehicles, the +12V Reversing Light is interfered with when the engine is running, which may interfere with the operation of the reversing camera kit. In other cases, this +12V reversing Light does not allow any additional consumers.
For all these vehicles, Beeper has developed the RCANR2 module to retrieve the +12V Backup Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and delivers a +12V Reversing light for the connection of a reversing camera.
You will find this RCANR2 CANBUS module by clicking HERE


The BEEPER CC1 is a complete kitdelivered with all the necessary accessories for the installation (screen, camera, 12 meters cable), as well as a simple and clear instruction manual.

17 Items
CC1
certifications
Name
Guarantee
1 year
Camera - monitor link
Wired
Waterproof index
IP67
Camera connection type
2 wires to connect
Cable length
12m cable
vision angle
120°
Night vision
Yes - 9 infrared LEDs
Camera definition
Colour camera
Camera storage temperature
-40°C / +85°C
Type of fixing
On the rear roof
Weight in kilos
from 1 to 2 kilos
Screen type
High definition colour LCD
Diagonal of the screen
7" (17
Supply voltage
12 V
Screen settings
No
Type of installation
Easy
video
video link
Operating temperature of the camera
-20°C/+ 70°C
Operation of the display
Touch control
Screen functions
Image inversion (rear or front camera)
Camera support
Swivel
Type of vehicle
Recreational vehicle

Specific References

*}
