The BEEPER CC1-N is a reversing video kit with a 7" rear view mirror screen, ideal for medium to large vehicles, such as commercial vehicles and motor homes. The complete kit includes a 7" LCD rear view mirror screen, a 9 LED black camera and a 12 meter cable. The mirror screen is fitted directly to your original mirror, making installation quick, easy and discreet.

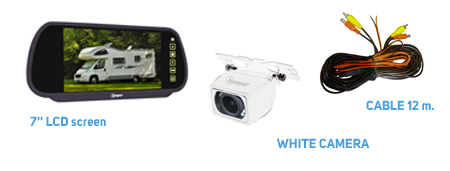

Kit composition
Main functions
• The CC1-N is a reversing video kit for medium-sized vehicles (commercial vehicles, vans, motor homes, etc.)
• When reversing, the reversing video system automatically activates.
• The screen allows you to see the rear blind spot so that you can manoeuvre in reverse in complete safety.
• As soon as you stop reversing, the system is inactive.
• Different coloured template lines allow you to visualize the distances when manoeuvring.
Activating and deactivating the system
The system automatically activates when the vehicle is shifted into reverse. It deactivates automatically as soon as you switch to another gear or to neutral. Installation of the display in the passenger compartment
Thanks to its 7-inch LCD rear-view mirror screen, the BEEPER CC1-N kit can be installed very easily and discreetly in the passenger compartment of your vehicle, guaranteeing you comfort and practicality.
Installation of the camera
The camera of the BEEPER CC1-N kit can be easily installed in the location of your choice. Preferably, we advise you to mount the camera in the centre of your vehicle, at the top of the rear bodywork.
Night vision
The camera of the Beeper CC1-N kit is equipped with 9 infrared LEDs, which have the ability to detect the level of light, thus providing the best possible night vision.
Please note that the operation of the LEDs is not perceptible to the naked eye.
These LEDs are a real asset for night vision, but they can sometimes distort the real colours of surrounding objects or obstacles (e.g. pink vegetation). However, this constraint remains negligible compared to the overall performances of the product.
Two types of possible visions
Screen function
Templates of distance visualisation
The CC1-N reversing video kit has template lines that are superimposed on the image to ensure easy and intuitive manoeuvring.
WARNING • VEHICLES THAT DO NOT ALLOW A CONSUMER TO BE CONNECTED TO THE REVERSING LIGHT HARNESSIn some vehicles, the +12V Reversing Light is interfered with when the engine is running, which may interfere with the operation of the reversing camera kit. In other cases, this +12V reversing Light does not allow any additional consumers. For all these vehicles, Beeper has developed the RCANR2 module to retrieve the +12V Backup Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and delivers a +12V Reversing light for the connection of a reversing camera. You will find this RCANR2 CANBUS module by clicking HERE
The BEEPER CC1-N is a complete kit, delivered with all the necessary accessories for the installation (screen, camera, 12 meters cable), as well as a simple and clear instruction manual.
