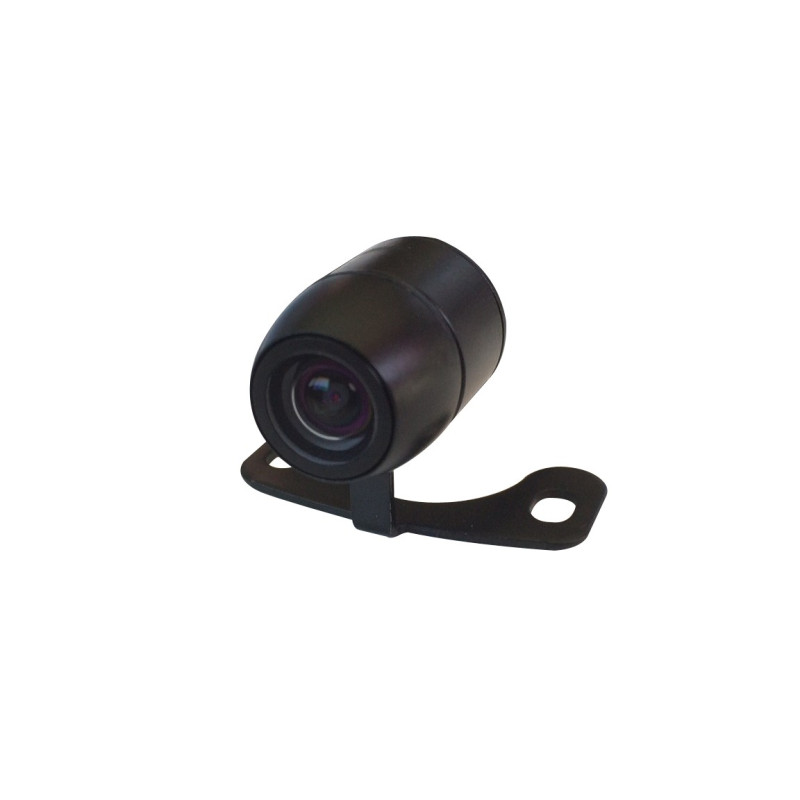

Micro camera on plate • RX-32

: RX-32

Neuf

The Beeper RX-32 is a micro-camera that can be installed anywhere thanks to its bracket or drilling tool. It will be equally useful at the front (hidden in the grille), as at the rear (near the license plate light), for monitoring the vehicle's blind spot zones at a glance.

€102.59
Tax included
223 Items
Description

More security

The Beeper RX-32 micro camera is functional even in low light conditions, the simple light generated by the reversing light being sufficient for perfect visibility. Its wide 150° viewing angle will give you a panoramic view of the elements behind your vehicle, reducing the risk of collisions and related repair costs. So you can feel confident when manoeuvring, exiting car parks, garages, etc.

Installation of the camera at the rear or front

The Beeper RX-32 micro camera can be installed anywhere thanks to its very small size (20 mm deep and 16 mm diameter). Its fixing system is double, it allows to insert it in a surface by drilling (tool provided) or on an adjustable bracket. The camera can be easily installed on all vehicles on the market in order to monitor any blind spot of the vehicle.

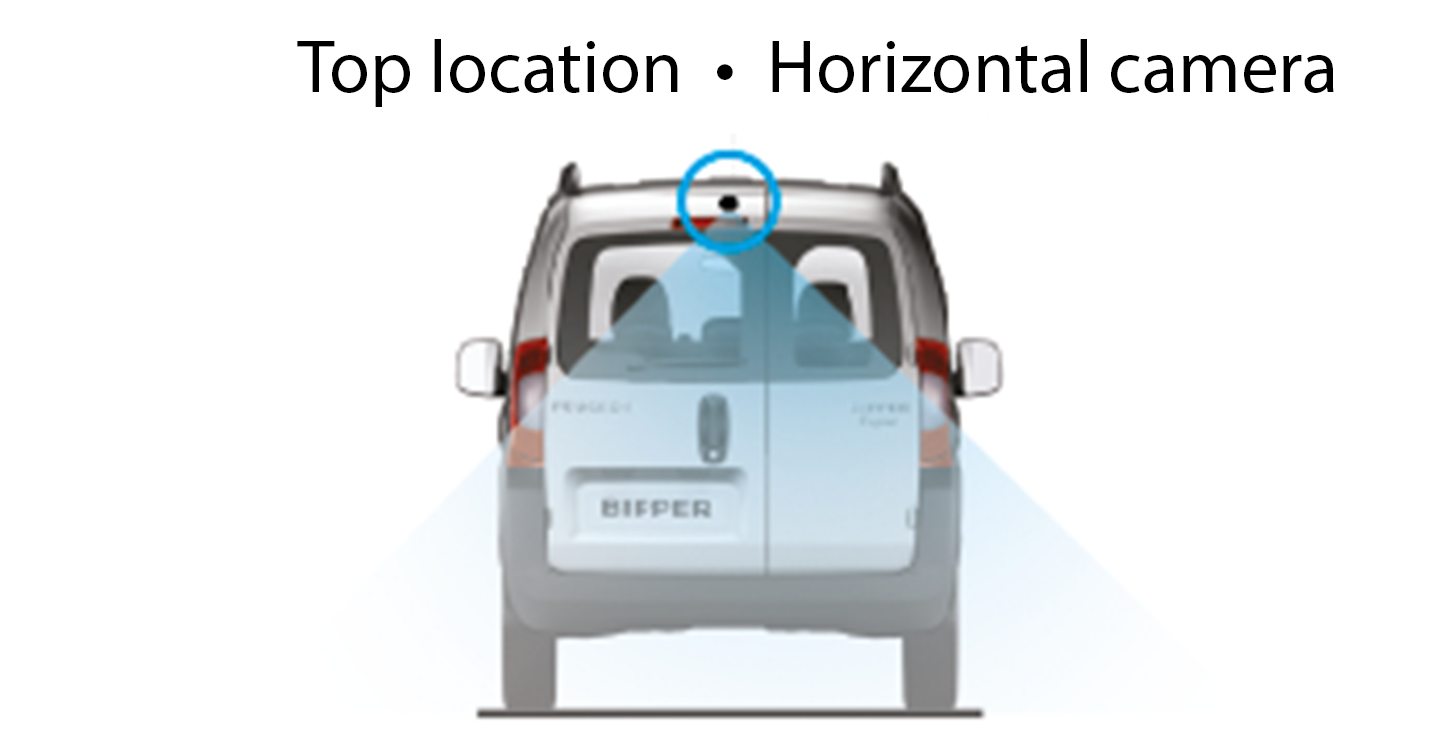

At the rear :

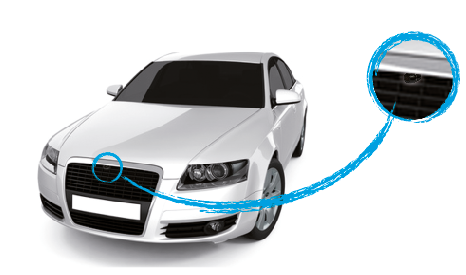

At the front :

Dimensions

The Beeper RX-32 has total dimensions of 18 mm x 20 mm

WARNING • VEHICLES THAT DO NOT ALLOW AN APPLIANCE TO BE CONNECTED TO THE REVERSING LIGHT HARNESS
On certain vehicles the +12 V reversing light is interfered with when the engine is running which can disturb the correct operation of the reversing radar kit. In other cases, this +12 V reversing Light does not allow any additional appliance.
For all these vehicles, Beeper has developed the RCANR2 module in order to retrieve the +12V Reversing Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and provides a +12V Reversing Light for the connection of a reversing camera.
You will find this RCANR2 canbus module by clicking HERE


The Beeper RX-32 is of course a complete kit, delivered with all the necessary accessories for the assembly, as well as a simple and clear assembly instructions.

223 Items
RX-32
New
Waterproof index
IP67 (do not use a high pressure cleaner)
Cable length
8 metres
Supply voltage
12V
Drilling diameter
16 mm (tool supplied)
Type of vehicle
Light vehicle
Recreational vehicle

Specific References

*}
