RVU-5R1W • Reversing video & radar kit with 5" LCD screen

€306.95
5 Items
Description

Specially designed for commercial vehicles and combining a reversing radar with waterproof connectors and a reversing video kit with micro camera and 5" LCD screen, the Beeper RVU-5R1W is ideal for your commercial vehicle.

Main functions

The RVU-5R1W is a radar & video reversing kit for commercial vehicles (vans, light trucks)
• When reversing, the reversing video system automatically switches on.
• The screen allows you to view the rear blind spot so that you can reverse safely.
• As soon as you stop reversing, the system is inactive.
• Different coloured template lines allow you to see the distances during a manoeuvre.
• The kit has 2 video inputs, so you can add a second camera.
• Display of the reversing distance on the screen.
• Sound alert on several levels.
• 12 m cable for reversing video
• 2.5 m cable for reversing sensors
• 6 m cable for the buzzer

Kit composition

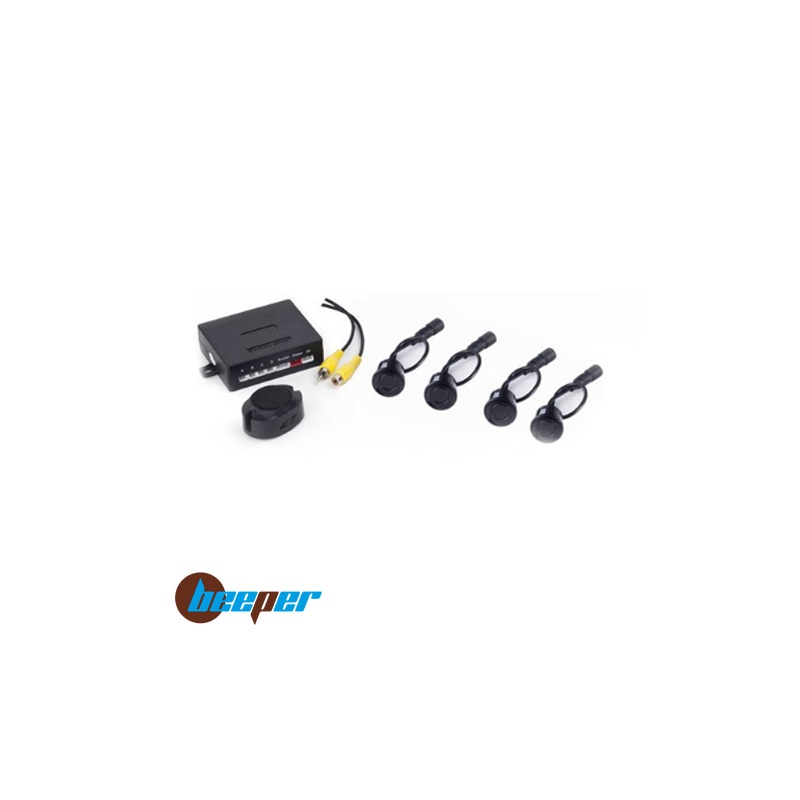

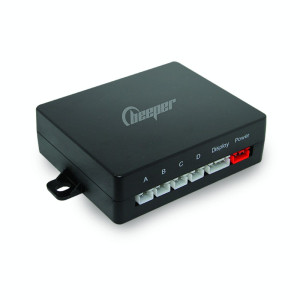

A. Connection central (x1)
B. Power supply cable for central (x1)
C. Fixing adhesives (x2)
D. Siliconized ultrasonic sensors with waterproof connectors (x4)
E. Drilling tool (x1)
F. Alert buzzer (x1)
G. Cable extension for reversing radar (x1)

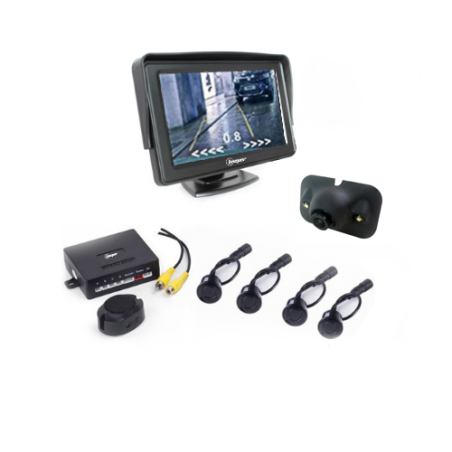

H. Flexible micro-camera (x1)
I. Fixing adhesive for flexible micro camera & tube of sealant mastic (x1)
J. 5" LCD screen with swivel mount (x1)

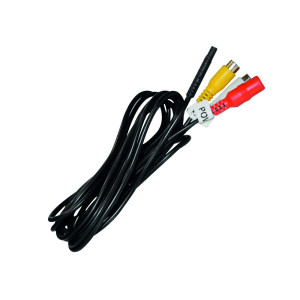

K. RCA connector (x1)
L. 12m cable extension for reversing video (x1)
M. Optional JACK connector (for 2nd camera installation) (x1)


System activation and deactivation

The system is automatically activated when the vehicle is shifted into reverse. It deactivates automatically when the vehicle is shifted into another gear or into neutral.

Installation of the display in the passenger compartment

The rotating stand allows you to use your screen in any direction.

Dimensions

Dimensions of the 5" LCD screen : 126 x 89 x 60 mm (screen diagonal : 12,4 cm)
Dimensions of the flexible micro-camera : 48 x 31 x 18 mm
Dimensions of the connection central : 85 x 71 x 25 mm
Dimensions of the alert buzzer : 51 x 36 x 22 mm

Display function

The 5" screen of the BEEPER RVU-5W kit has several adjustable functions (brightness, contrast, etc.). The adjustment is made using the +, MENU, - buttons located on the back of the screen (see diagram below).

A. Menu settings (up & increase)
B. Enter the menu
C. Menu settings (down & decrease)

Using the reversing radar

Supplied with a buzzer, the Beeper RVU-5R1W kit's reversing radar has a system of progressive sound alerts, allowing you to manoeuvre your commercial vehicle safely.

- Between 150 and 250 cm, the alert is only digital (if screen & camera connected), with distances displayed on the screen.
- Between 100 and 150 cm, the buzzer emits spaced beeps.
- Between 50 and 100 cm, the buzzer emits closer beeps.
Between 30 and 50 cm, the buzzer emits a continuous beep.


Distances visualization templates

WHITE loop = reversing distances visualization TEMPLATES

WHITE loop closed = VISIBLE templates (selection of origin)
WHITE loop open (cut) = Templates NOT VISIBLE

/! The selection of this option is made with the camera not powered.

Note : The selection of origin made for a "horizontally" positioned camera, a screen fixed or glued from above & in reverse camera version (visible templates). To change the loop status, please disconnect the camera first, then reconnect it after the operation.

Installation of the camera on the vehicle

The adjustable angle of the camera allows you to position it in two different locations on the vehicle, depending on your choice or a technical constraint: on the top of the body (at the level of the upper brake light) or on the bottom of the body (at the level of the plate light).

/! If installing the camera vertically, be sure to fill the hole at the top with the mastic adhesive provided, in order to strengthen the sealing and thus prevent water from entering the vehicle by capillary action.

Installation of the sensors on the vehicle

The position of the sensors is shown in the diagram below. A drilling tool (hole saw) is supplied with the product. We advise you to protect the bumper with an adhesive (type painter's adhesive) in order not to damage the bumper when drilling. A light sanding of the edges of the hole may be necessary after drilling.

The sensors should at least have an axis parallel to the ground, i.e. 90°, according to the perpendicular of the bumper.

The sensors must be placed at least 43 cm from the ground (see diagram below). They can be covered with a veil of paint for a perfect finish.

WARNING • VEHICLES THAT DO NOT ALLOW AN APPLIANCE TO BE CONNECTED TO THE REVERSING LIGHT HARNESS
On certain vehicles the +12 V reversing light is interfered with when the engine is running which can disturb the correct operation of the reversing radar kit. In other cases, this +12 V reversing Light does not allow any additional appliance.
For all these vehicles, Beeper has developed the RCANR2 module in order to retrieve the +12V Reversing Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and provides a +12V Reversing Light for the connection of a reversing camera.
You will find this RCANR2 canbus module by clicking HERE

The BEEPER RVU-5R1W is of course a complete kit, delivered with all the accessories necessary for the assembly, as well as a simple and clear assembly instructions.
