RE004i • Radar de recul • INSERT IN PARKING SENSOR

Manufacturer type reversing radar • RE004i

: RE004i

Reversing Radar

The new BEEPER RE004i reversing radar allows the sensors to be integrated through inside the bumper and thus provides an exemplary finish comparable to the original reversing radars.

Its installation is universal and simple.

€95.00
Tax included
14 Items
Description

The BEEPER RE004i is a simple and efficient parking aid system that alerts the driver when reversing. As parking has become an increasingly important daily constraint, the BEEPER RE004i will ensure your comfort and safety during each manoeuvre.


For increased comfort

The buzzer of the BEEPER RE004i can be placed in the boot or in the passenger compartment of the vehicle.

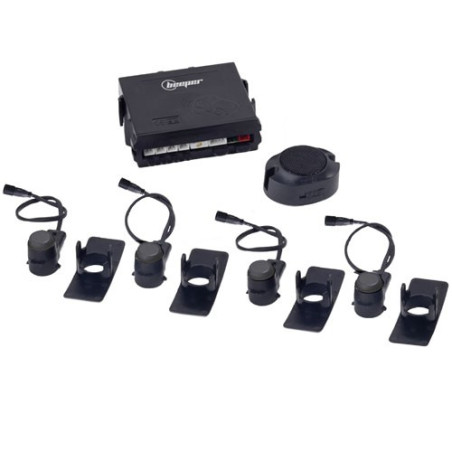

Kit composition

- x1 Central + mounting bracket
- x4 Ultrasonic sensors + silicones
- x4 Sensor holder
- x4 Sensor connection cable > central
- x1 Warning buzzer
- x1 Power supply cable
- x1 Paint holder
- x1 Hole saw
- x1 Adhesive (sensors / central / buzzer)
- x1 User manual


 Main functions

- Sensors with integration through the inside of the bumper (either original finish, flush sensor)
- 6 warning levels
- Rear detection (from 1.5 m. to 30 cm)
- Progressive sound alert by BEEP
- Volume switch (mini/maxi)
- Sound alert buzzer in the boot
- Anti-error detection system (rain, snow...)
- 100% risk-free compatible installation
- 2.5 m of cable

More security

The BEEPER RE004i is equipped with 4 ultrasonic sensors for an optimal detection zone, so it detects all obstacles, reduces the risk of collisions and related repair costs. So you can feel confident when manoeuvring, exiting car parks, garages, etc... As soon as you engage reverse gear, the 4 sensors detect the presence of potential obstacles at the rear of the vehicle.

As you approach an obstacle, the beeps get closer and closer. When the signal becomes continuous, your bumper is within 30 cm of this obstacle. No more risk of damaging the rear of your vehicle.

Installation of sensors

The sensors must be placed at least 50 cm from the ground. Indeed, sensors placed lower will detect the ground, which will cause unwanted triggers.

If you have a commercial vehicle, sports car or other vehicle with a lowered bumper, we have a solution for you. You have the possibility to order specific angled sensors that allow a lower installation; at 43cm from the ground. Access to the product sheet by clicking HERE.

Setting the detection field




With the BEEPER RE004i, parking is child's play.

The sensors can be covered with a veil of paint for a perfect finish.

WARNING • VEHICLES THAT DO NOT ALLOW AN APPLIANCE TO BE CONNECTED TO THE REVERSING LIGHT HARNESS
On certain vehicles the +12 V reversing light is interfered with when the engine is running which can disturb the correct operation of the reversing radar kit. In other cases, this +12 V reversing Light does not allow any additional appliance.
For all these vehicles, Beeper has developed the RCANR2 module in order to retrieve the +12V Reversing Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and provides a +12V Reversing Light for the connection of a reversing camera
You will find this RCANR2 canbus module by clicking HERE

Product not compatible with a metal bumper


The BEEPER RE004i is of course a complete kit, delivered with all the accessories necessary for the assembly, as well as a simple and clear assembly instructions.

14 Items
RE004i
certifications
Certifications are available soon.
Guarantee
3 years
Type of connection between the central and the display
Wired connection
Display type
Without
Type of sensors
Ultrasonic sensors to be drilled
Number of ultrasonic sensors
4
Number of radar alerts
6
Type of radar alert
Audible alert by BEEPS
Type d'alimentation de l'afficheur
Alimentation 12V
Type of radar activation
Activation by reversing light
Sensors detection in centimetres
Rear detection 150-30cm
Weight (in kg)
1
Hitch compatible
Yes
Installation level
Confirmed
Type of radar detection
Rear
Alert display when a programmed speed limit is exceeded
Yes
Display of the vehicle's battery voltage
Yes
High quality display with automatic day/night & contrast adjustment
Yes
Drilling diameter
18 mm
Dimensions
Sensor dimensions 16 mm diameter
Sensor spacer dimensions
Width : 30 mm / Length : 79 mm
Type of vehicle
Light vehicle
