RE01AV/4 • Radar avant à buzzer 4 capteurs

Front radar 4 sensors with buzzer • RE01AV/4

: RE01AV/4

RE01AV/4 • Front radar with buzzer • 4 sensors

The RE01AV/4 front radar is a simple and efficient product. It will help you in your manoeuvres or when visibility is reduced (pavements, obstacles...). Its sensors ensure a detection of 80cm to 30cm.

The BEEPER FRONT RADAR system (ref: RE01AV/4) is 100% universal, it is compatible with all market vehicles (multiplexed included).

€101.95

Tax included

167 Items

Description

A simple and discreet installation

The BEEPER FRONT RADAR system (ref: RE01AV/4) is 100% universal, it is compatible with all market vehicles. The sensors can be painted to blend in with the bumper. The front detection activates automatically as soon as the brake pedal is pressed and is timed for 10 seconds : when you park your vehicle in forward gear (e.g. in diagonal), any front impact is avoided.

It is possible to deactivate the front sensors thanks to a switch supplied in the kit to avoid untimely triggering. Indeed, at high speed the front radar can consider rain, snow or hail... as an obstacle. This is why this switch makes it possible to cut the front radar and to avoid these untimely releases.

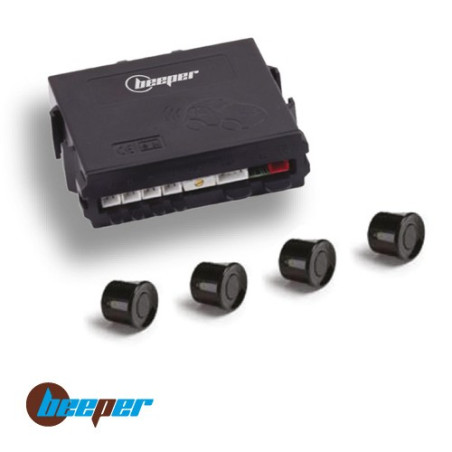

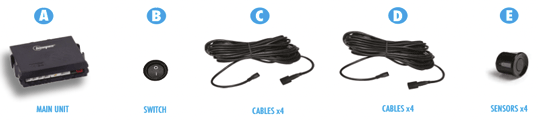

Kit composition

- A central unit with integrated buzzer
- 8 cables of 3m

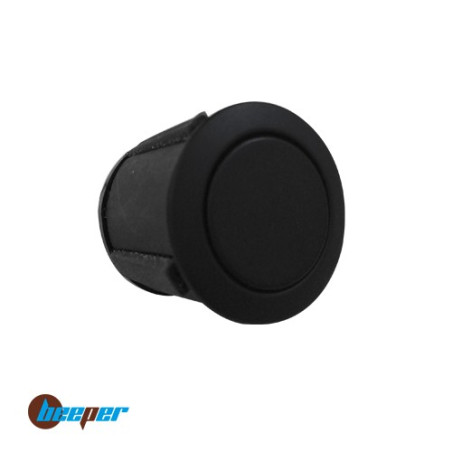

- 4 sensors (The sensors can be covered with a veil of paint for a perfect finish.)
- A switch
- Drilling tool

Main functions

- Front detection from 0.8m to 0.3m
- 4 ultrasonic sensors
- Alerte sonore par bips (60dB)
- Switch provided for radar activation & deactivation
- 12V power supply
- Drilling tool supplied

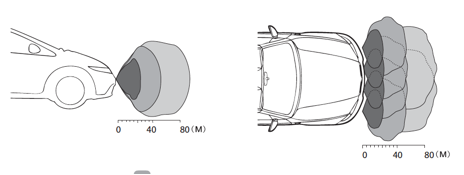

Detection distances

The sensors of the Beeper RE01AV/4 kit ensure detection from 80cm to 30cm.

Installation of sensors

The sensors should be placed at least 50cm above the ground. Indeed, sensors placed lower will detect the ground, which will cause untimely triggers.

If you have a commercial vehicle, sports car or other vehicle with a lowered bumper, we have a solution for you. You have the possibility to order specific angled sensors that allow a lower installation; at 43cm from the ground. Access to the product sheet by clicking HERE.

The sensors can be covered with a veil of paint for a perfect finish.

WARNING • VEHICLES THAT DO NOT ALLOW AN APPLIANCE TO BE CONNECTED TO THE REVERSING LIGHT HARNESS
On certain vehicles the +12 V reversing light is interfered with when the engine is running which can disturb the correct operation of the reversing radar kit. In other cases, this +12 V reversing Light does not allow any additional appliance.
For all these vehicles, Beeper has developed the RCANR2 module in order to retrieve the +12V Reversing Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and provides a +12V Reversing Light for the connection of a reversing camera.
You will find this RCANR2 canbus module by clicking HERE

The BEEPER RE01AV/4 is of course a complete kit, delivered with all the accessories necessary for the assembly, as well as a simple and clear assembly instructions

167 Items
RE01AV/4
Guarantee
1 year
Type of connection between the central and the display
Wired connection
Display type
Without
Type of sensors
Ultrasonic sensors to be drilled
Number of ultrasonic sensors
4
Type of radar alert
Audible alert by BEEPS
Type d'alimentation de l'afficheur
Alimentation 12V
Type of radar activation
Independent activation by switch (supplied)
Sensors detection in centimetres
Front detection 70-30cm
Weight (in kg)
1
Sensors diameter
22 mm
Installation level
Confirmed
Type of radar detection
Front
Display of the vehicle's battery voltage
Yes
Type of vehicle
Light vehicle
