Reversing video kit with white micro-camera & 7'' LED screen • RW109CC

: RW109CC

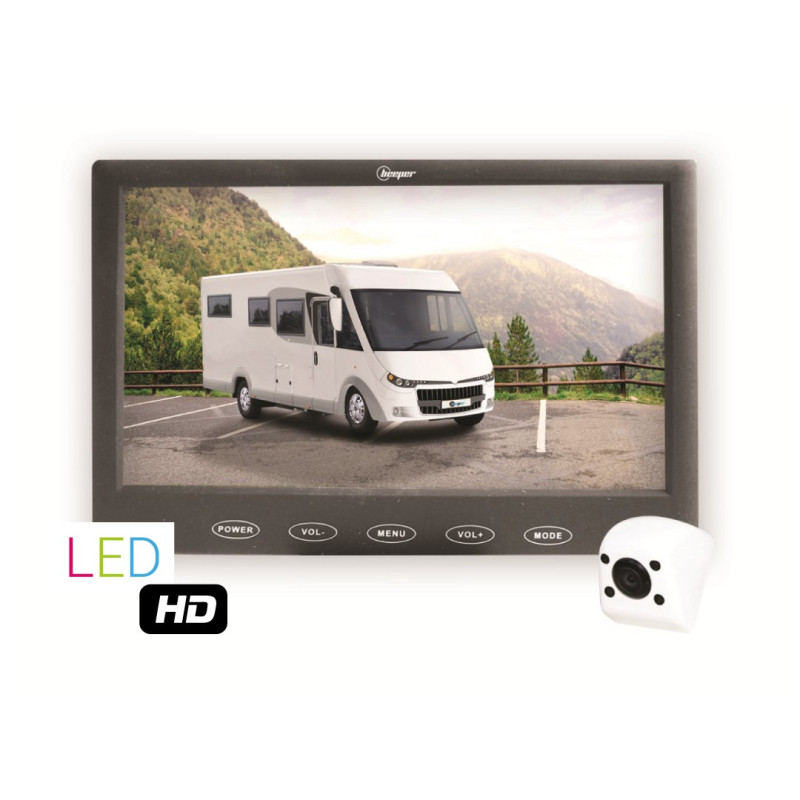

The BEEPER RW109CC reversing video system is a complete kit that can be easily installed on your motor home or commercial vehicle. Its small white camera ensures discreet integration on your vehicle and its 7" screen guarantees optimal visual comfort.

€189.90
Tax included
4 Items
Description

The BEEPER RW109CC reversing video system is a complete kit that can be easily installed on your motor home or commercial vehicle. Its small white camera ensures discreet integration on your vehicle and its 7" screen guarantees optimal visual comfort.

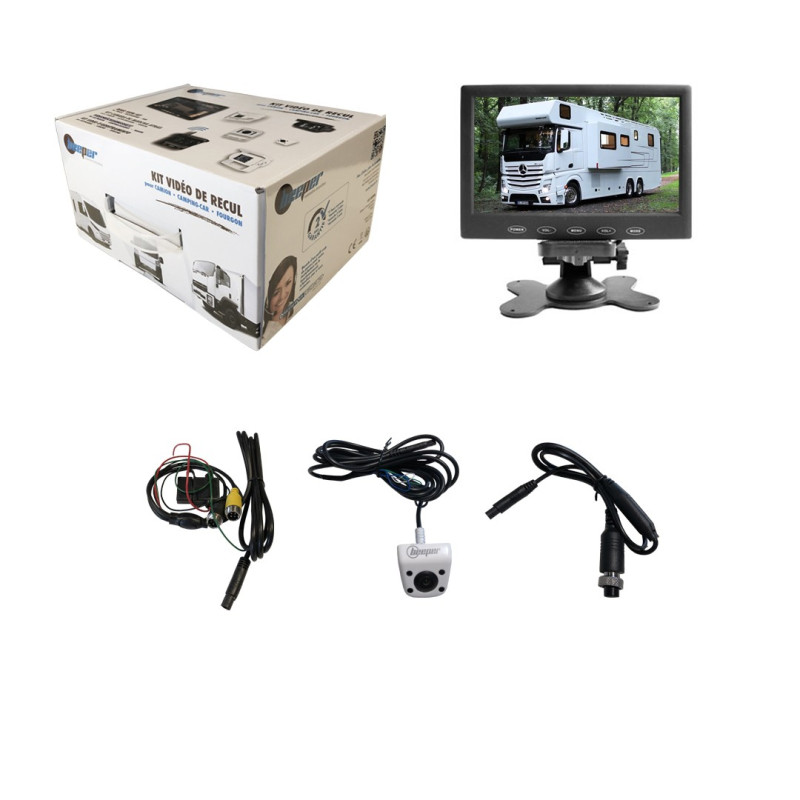

Kit composition

This complete kit contains :

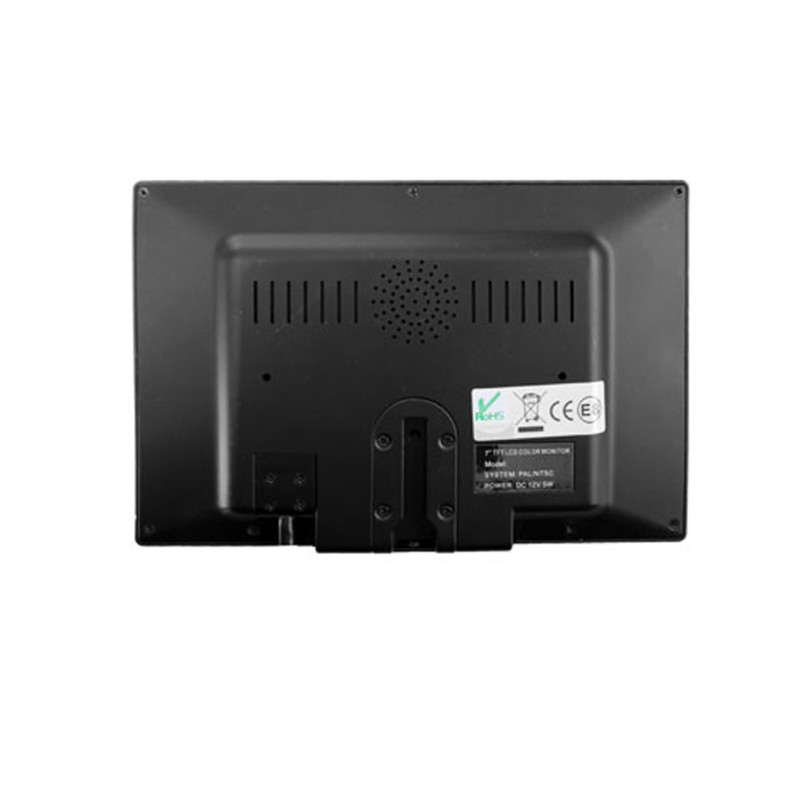

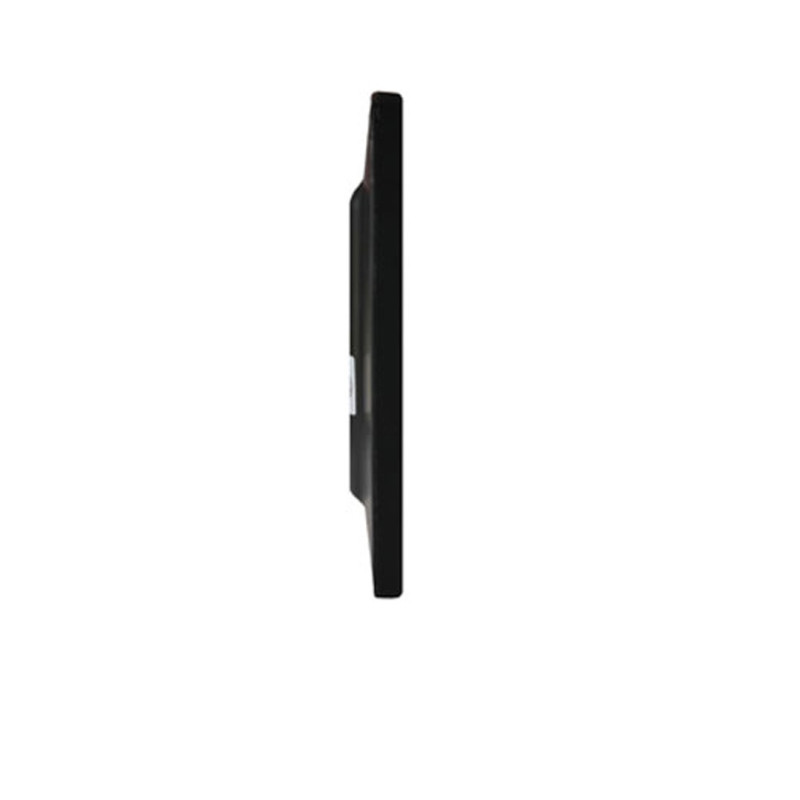

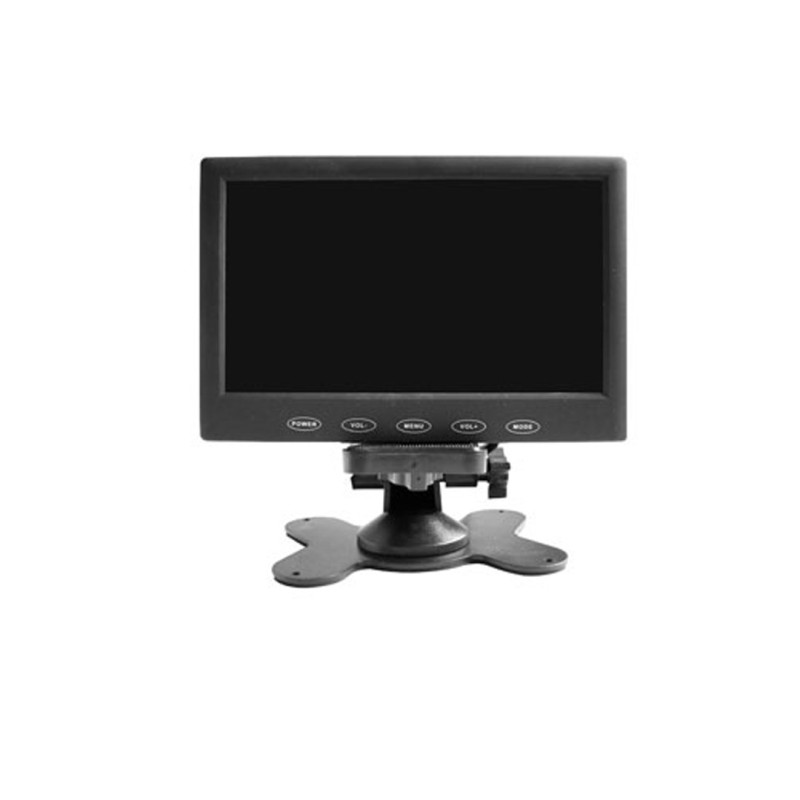

- 7 inch LED screen

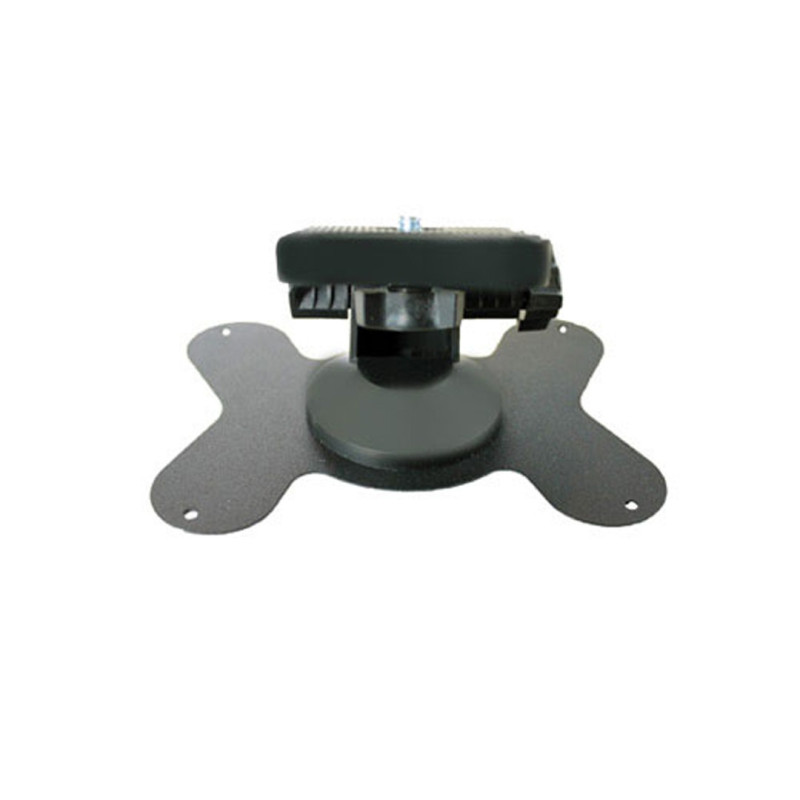

- Adjustable support (with its fixing adhesive)
- 4 IR LED white micro camera with night vision

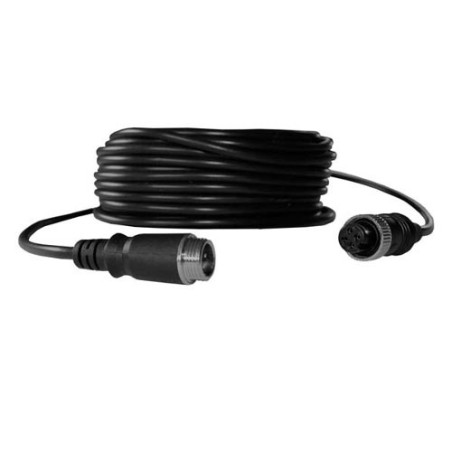

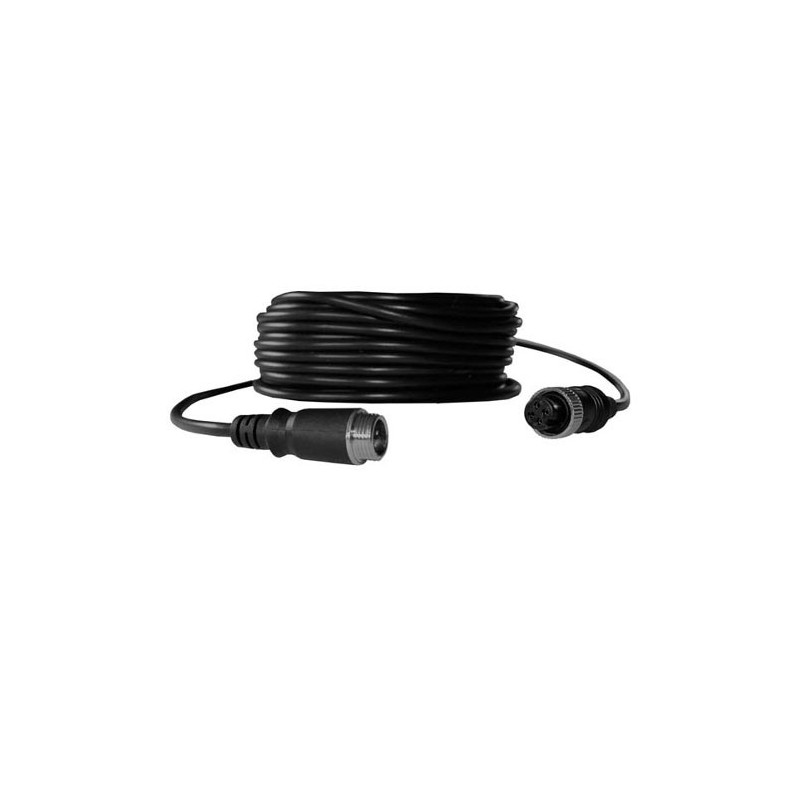

- 15 meter shielded cable, 4 pin connector

Main functions

- 7 inch LED display
- 4 IR LED white micro camera with night vision
- Easy installation and connection
- IP67 waterproof rating
- 12-24V power supply
- Power consumption 300 mA
- 2 cameras can be connected
- Volume, brightness and contrast adjustment of the screen
- PAL / NTSC system
- 170° angle
- Operating temperature -20°C to +70°C
- Storage temperature -30°C to +80°C

Installation of the display in the passenger compartment

Installation of the camera

  • 1 - After having chosen the best location for the camera (high position or plate reader), drill a hole to pass the camera wire.
  • 2 - Remove the nut of the threaded rod of the camera and pass the wire.
  • 3 - Retrieve this wire from the box, insert the nut and screw it onto the threaded rod. The tightening must be sufficiently strong to ensure the sealing and the good holding of the camera.
  • 4 - If the image is reversed up/down, cut the blue loop.

Motorhome : vertical installation / Van : horizontal installation

Night vision

The camera in the Beeper RW109CC kit is equipped with 4 infrared LEDs, which have the ability to detect the level of light, thus making it possible to provide the best possible night vision.

Please note that the operation of the LEDs is not perceptible to the naked eye.

These LEDs are a real asset for night vision, but they can sometimes distort the real colours of surrounding objects or obstacles (e.g. pinky vegetation). However, this constraint remains negligible compared to the overall performance of the product.

Two types of vision possible

Be careful, as the camera's angle of view is not adjustable, be sure to define the desired vision beforehand.

Distance visualisation templates

Distance visualization template lines appear on the screen, which allow the best evaluation of the distances between the vehicle and the obstacle. These template lines can be deactivated when the product is installed if desired.

Screen functions

AV1• AV2 : Selection of camera 1 or 2 If you have installed 2 cameras or if another video source (DVD player, ...) is connected to the screen, this button allows you to switch the second video source.

- image rotation up and down possible.
- the inversion of the image right-left or mirror effect: useful if the camera is moved to the front. This function is useful when installing or changing the position of the screen or camera.

Dimensions

More security

Powered directly by the "plus after contact" or via the rear reversing light, the BEEPER RW109CC can be used for rear-viewing, permanent vision of the rear of the vehicle, or simply for reversing manoeuvres (reversing video).

With an operating voltage of 12-24V DC, the BEEPER RW109CC is perfectly suited for motorhomes or commercial vehicles.

WARNING • VEHICLES THAT DO NOT ALLOW AN APPLIANCE TO BE CONNECTED TO THE REVERSING LIGHT HARNESS
On certain vehicles the +12 V reversing light is interfered with when the engine is running which can disturb the correct operation of the reversing radar kit. In other cases, this +12 V reversing Light does not allow any additional appliance.
For all these vehicles, Beeper has developed the RCANR2 module in order to retrieve the +12V Reversing Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and provides a +12V Reversing Light for the connection of a reversing camera.
You will find this RCANR2 canbus module by clicking HERE
The BEEPER RW109CC is of course a complete kit, delivered with all the accessories necessary for the assembly, as well as a simple and clear assembly instructions.
4 Items
RW109CC
LED light
4 LEDs small white camera
Waterproof index
IP67
Camera connection type
wired
vision angle
170°
Night vision
4 infrared LEDs
Screen type
High definition colour LCD
Diagonal of the screen
7" (17
Supply voltage
12-24V
Screen support
Fixing foot
Screen settings
Colour / brightness / contrast / language selection / mode / volume
Type of vehicle
Recreational vehicle
