The BEEPER RW037-P is a parking aid system specially developed for passenger vehicles. More and more imposing vehicles (MPVs, SUVs, 4x4s) with painted bumpers, vehicles are more and more difficult to park without the risk of scratching.
The rear vision also provides real safety in the event of a pedestrian or child passing behind the vehicle.
A simple model

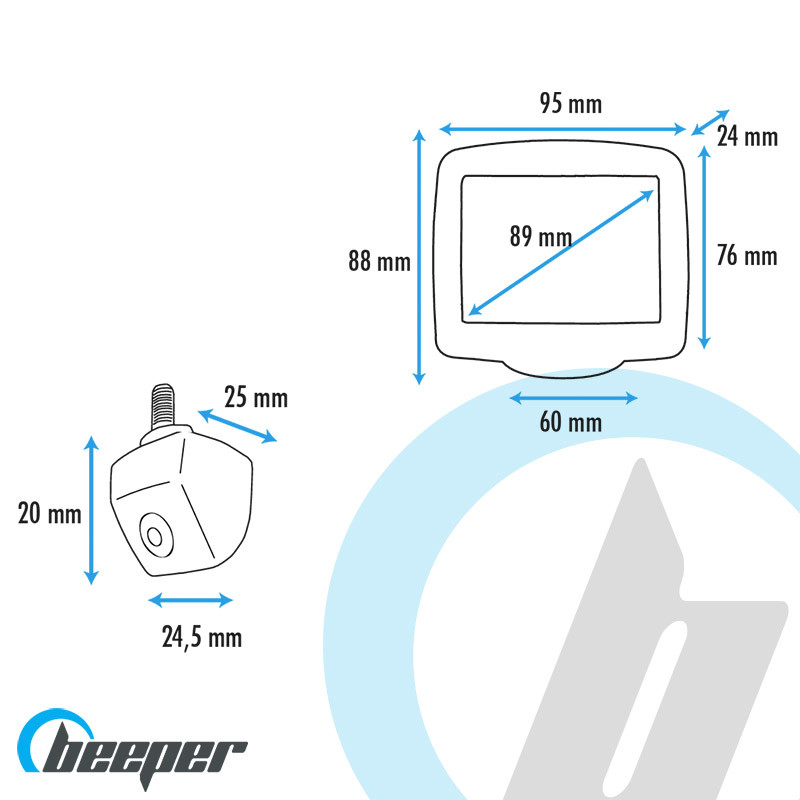

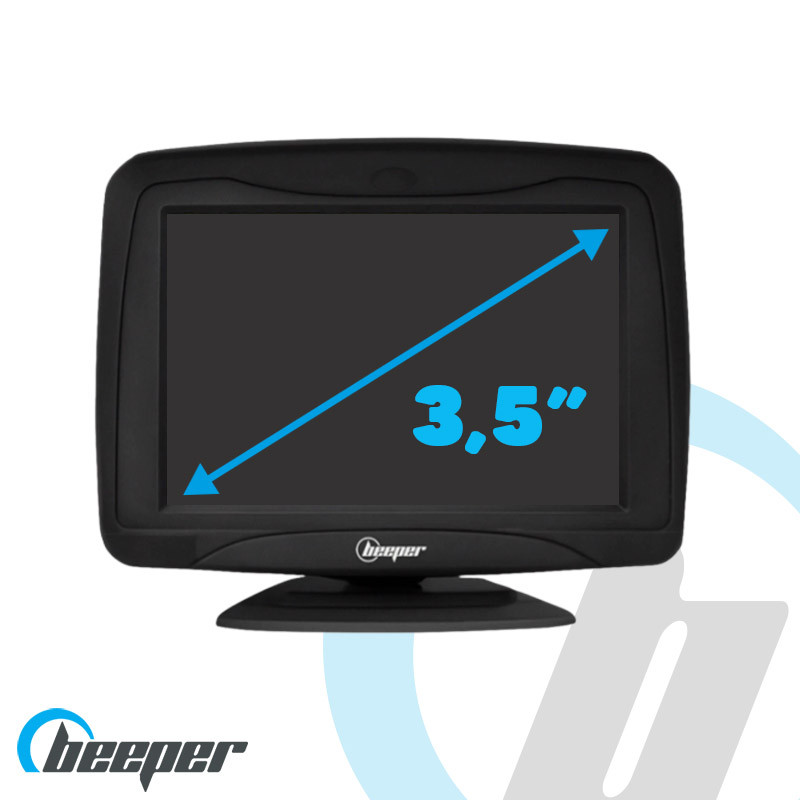

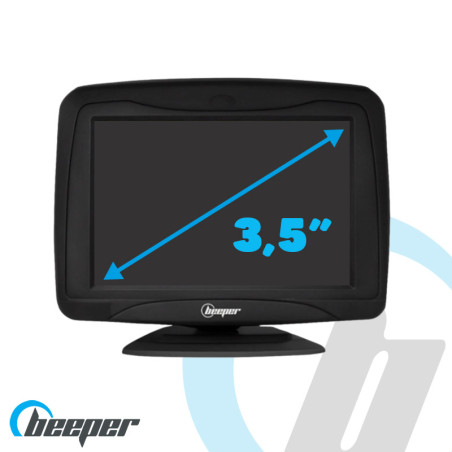

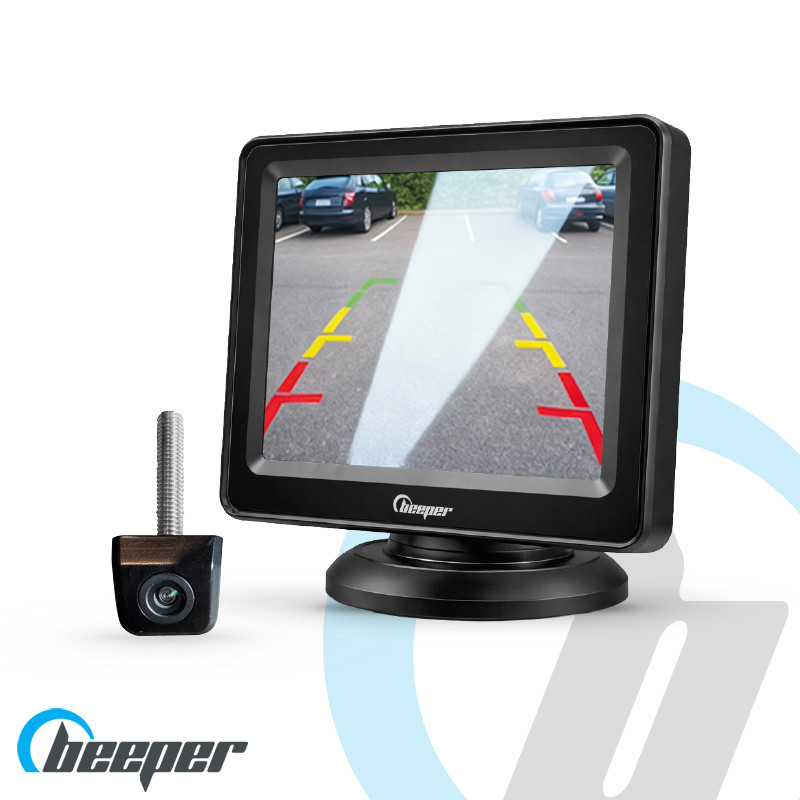

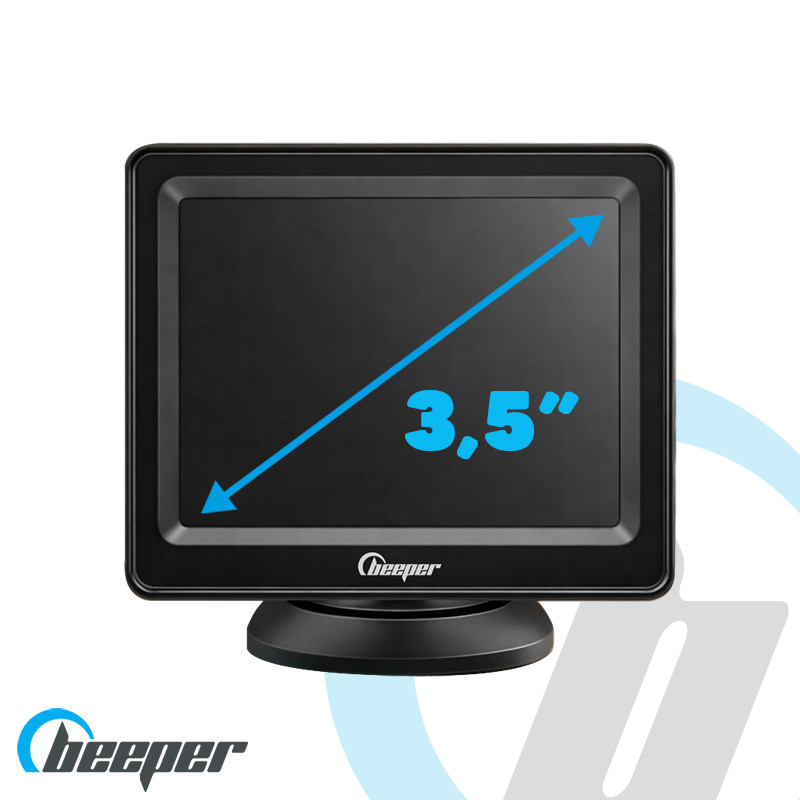

The BEEPER RW037-P is equipped with a mini LCD screen of 3.5 inches (9 cm) and a camera on a plate, which you will install directly between your number plate and the boot compartment of your vehicle.

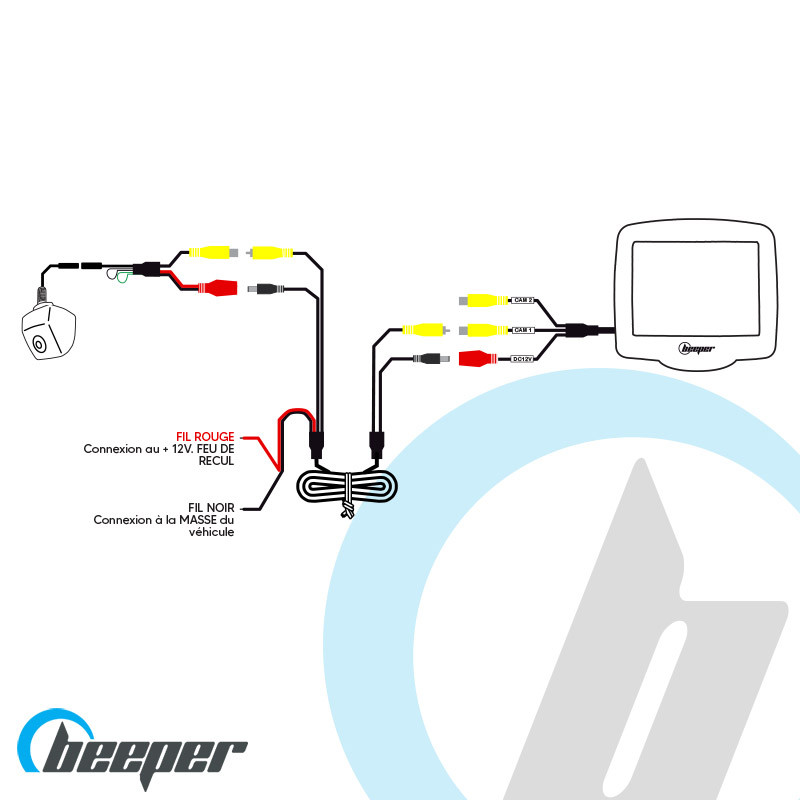

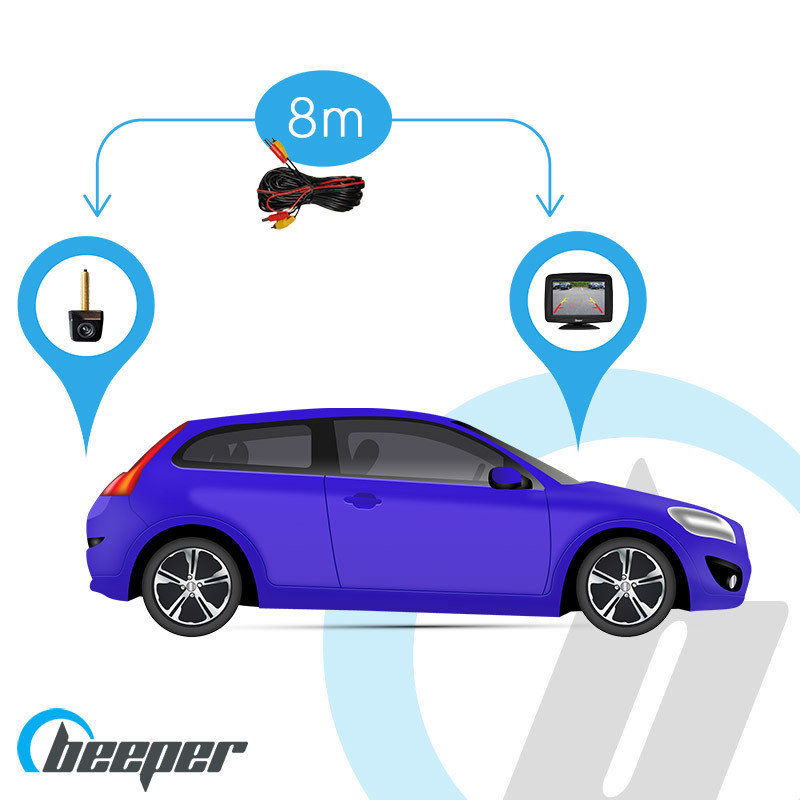

The 8m cable supplied in the BEEPER RW037-P pack allows for installation in passenger vehicles, but also in commercial vehicles. A simple 2-wire connection and your reversing video is operational.
More security

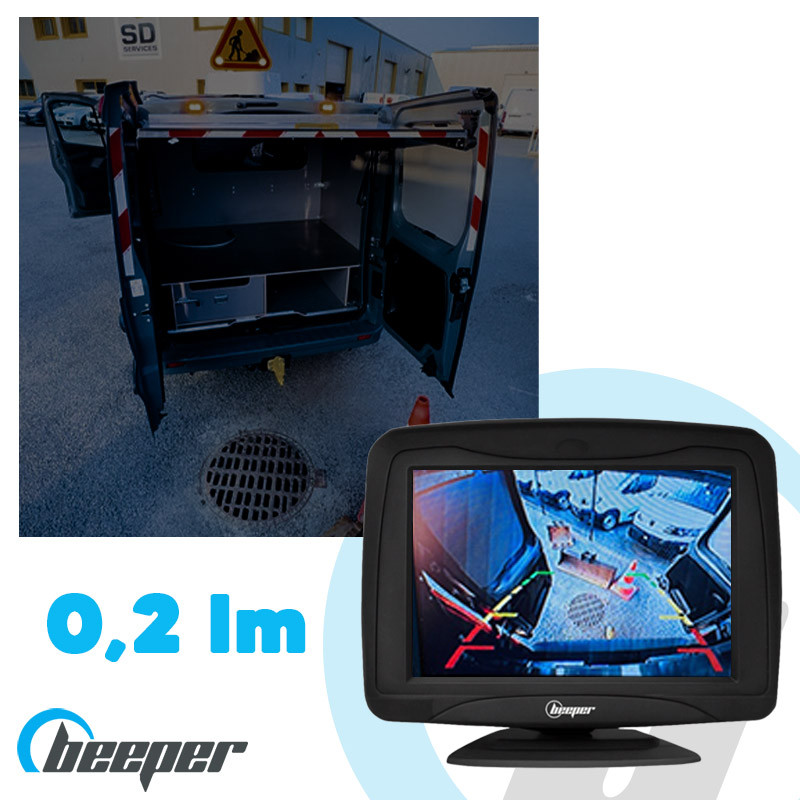

The BEEPER RW037-P is functional even in low light conditions, as the light generated by the reversing light alone is sufficient for perfect visibility.

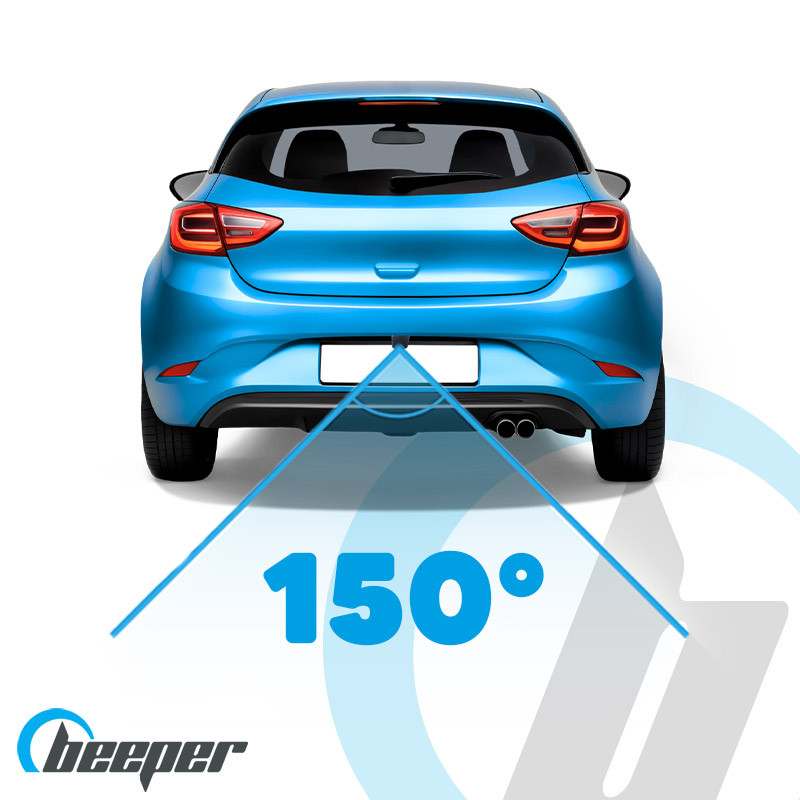

Its wide 150° viewing angle will give you a panoramic view of the elements behind your vehicle, reducing the risk of collisions and related repair costs. So you can feel confident when manoeuvring, exiting car parks, garages, etc ...

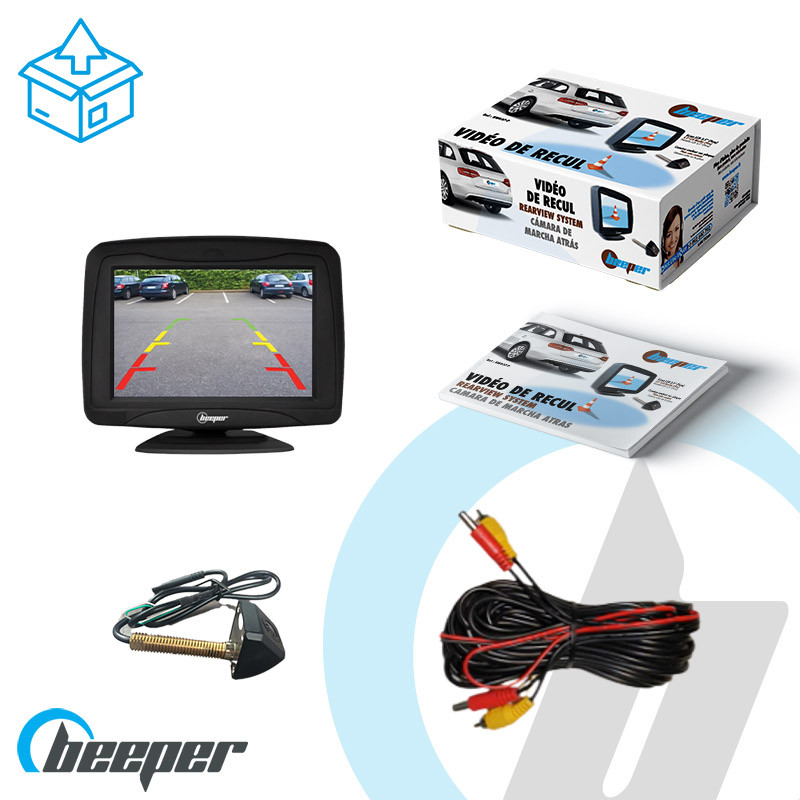

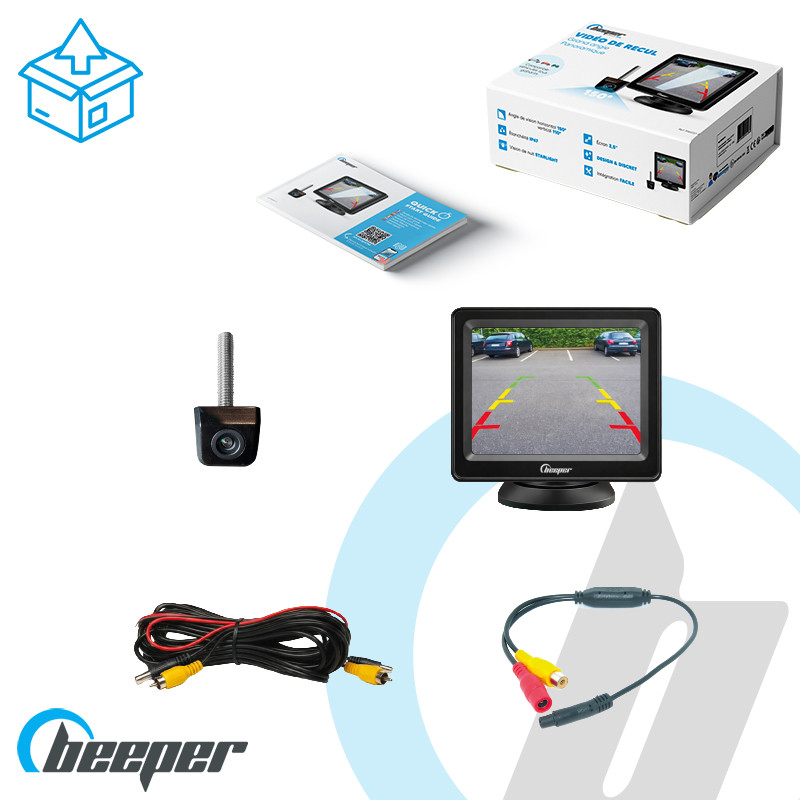

Kit composition
The RW037-P reversing video kit contains :
- a 3.5" LCD screen
- 8m cable supplied
- a camera on plate

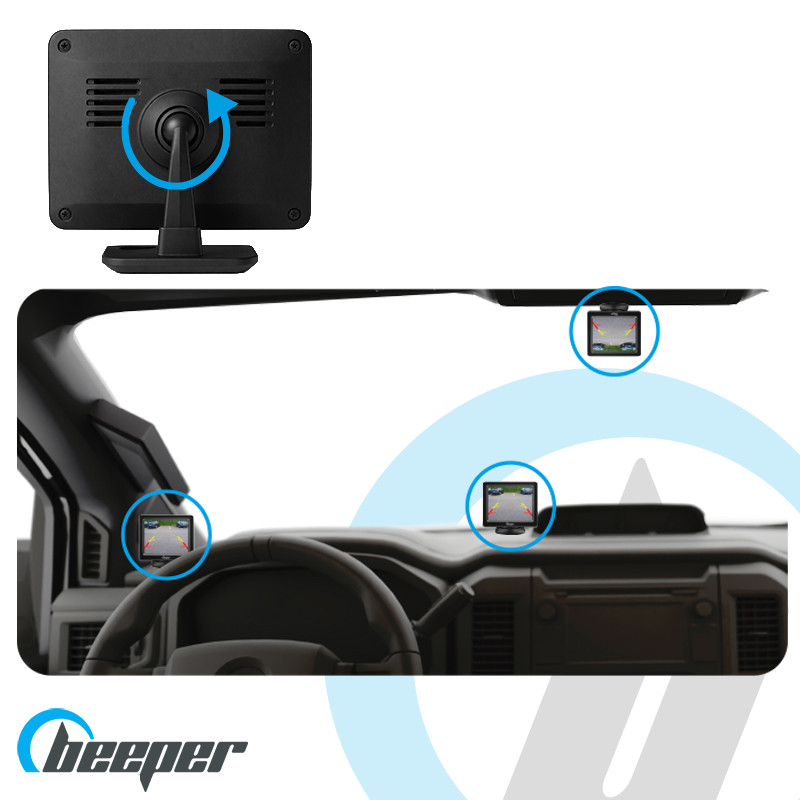

Installation of the screen in the passenger compartment

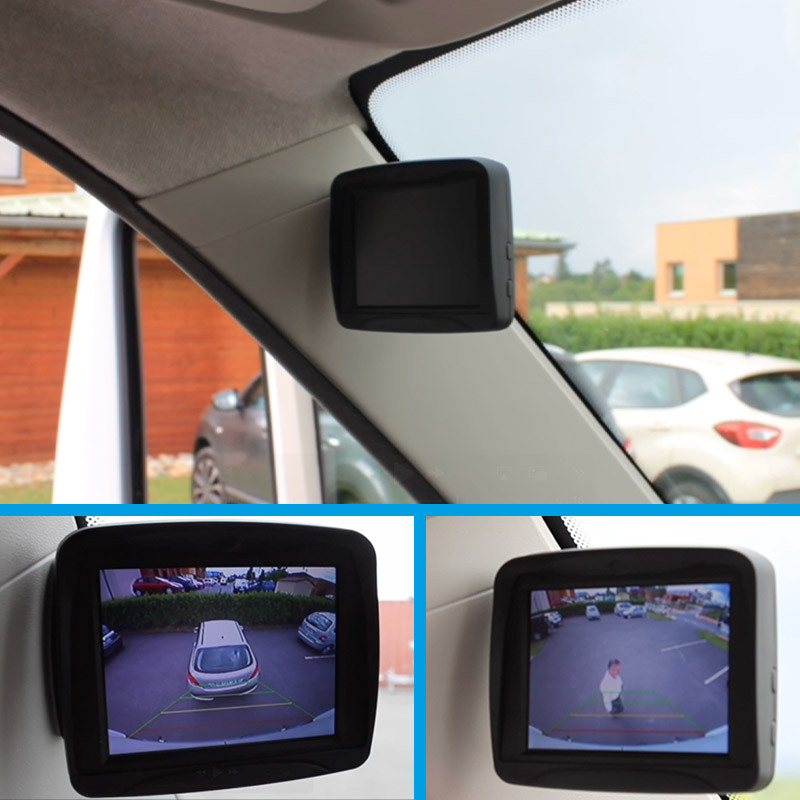

The RW037-P screen can be placed anywhere in your passenger compartment thanks to its rotating support and high resistance double-sided adhesive.

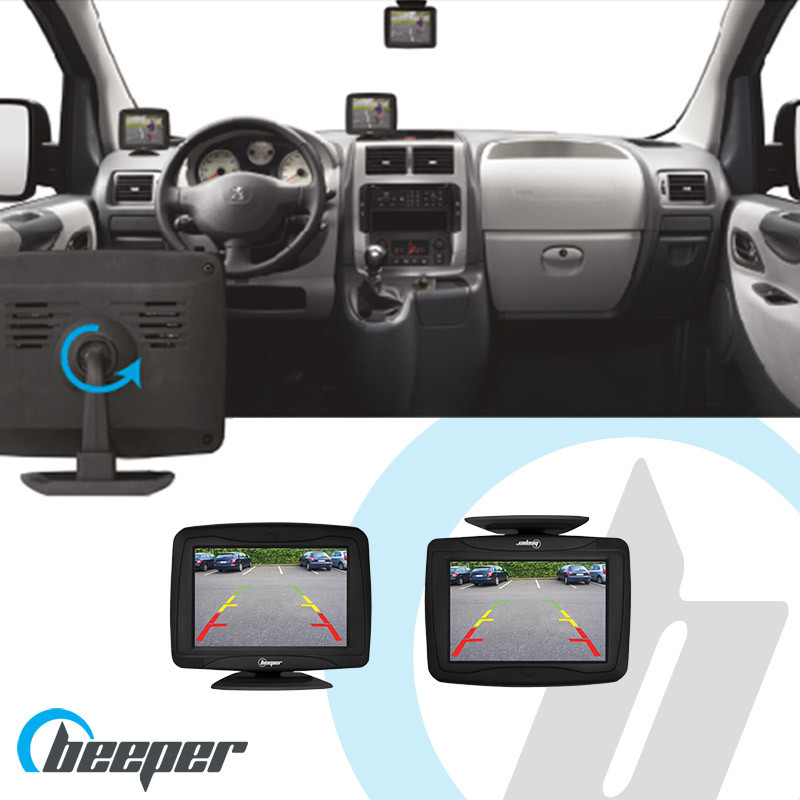

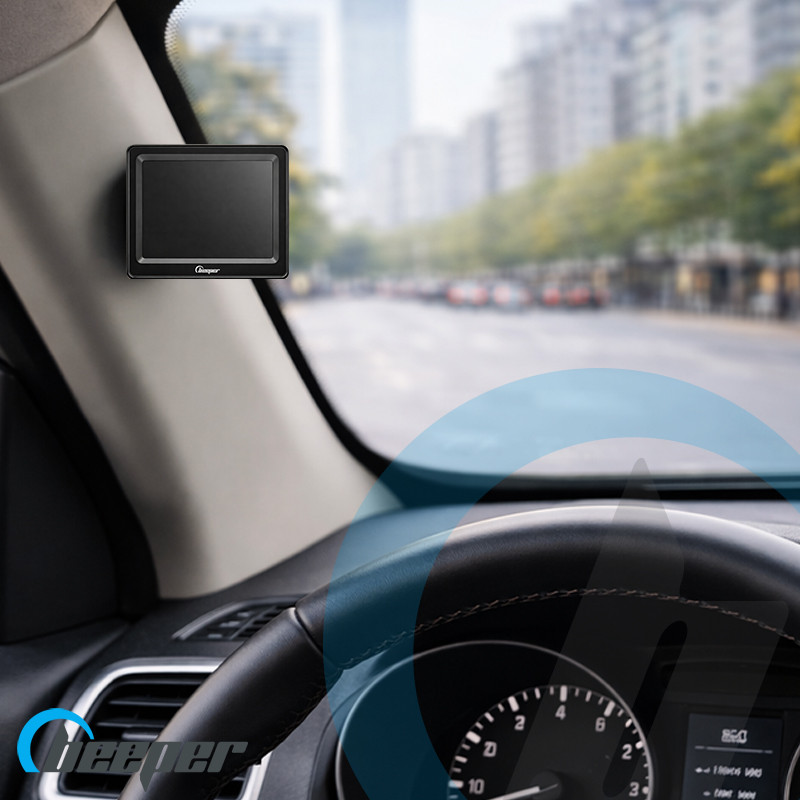

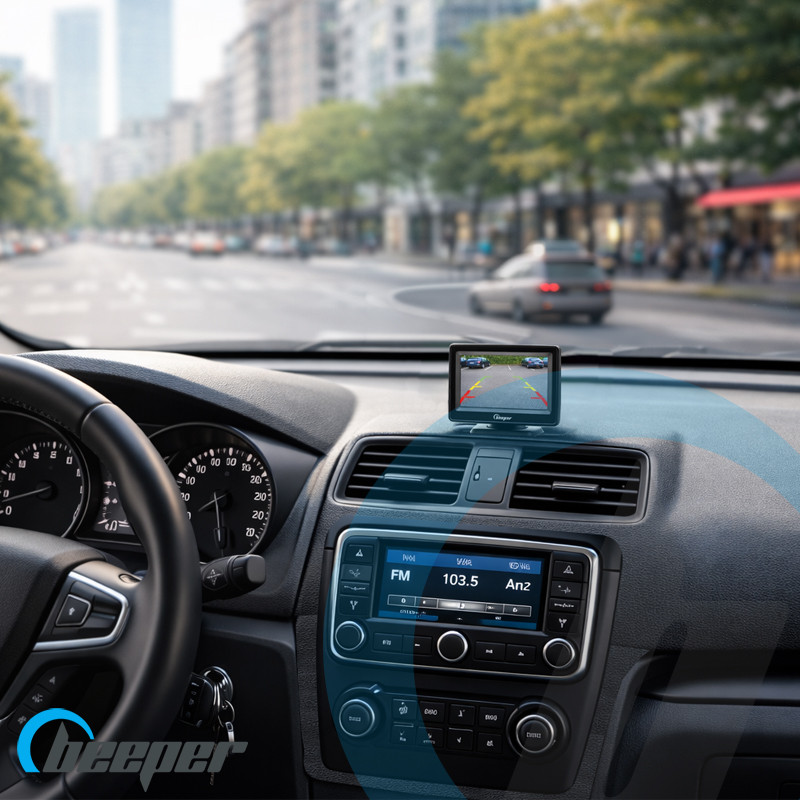

The ideal position for your display is on the top of your headliner near your interior rear view mirror. If this position is not possible, or does not suit you, you can position the screen on the dashboard in a visible position when reversing.

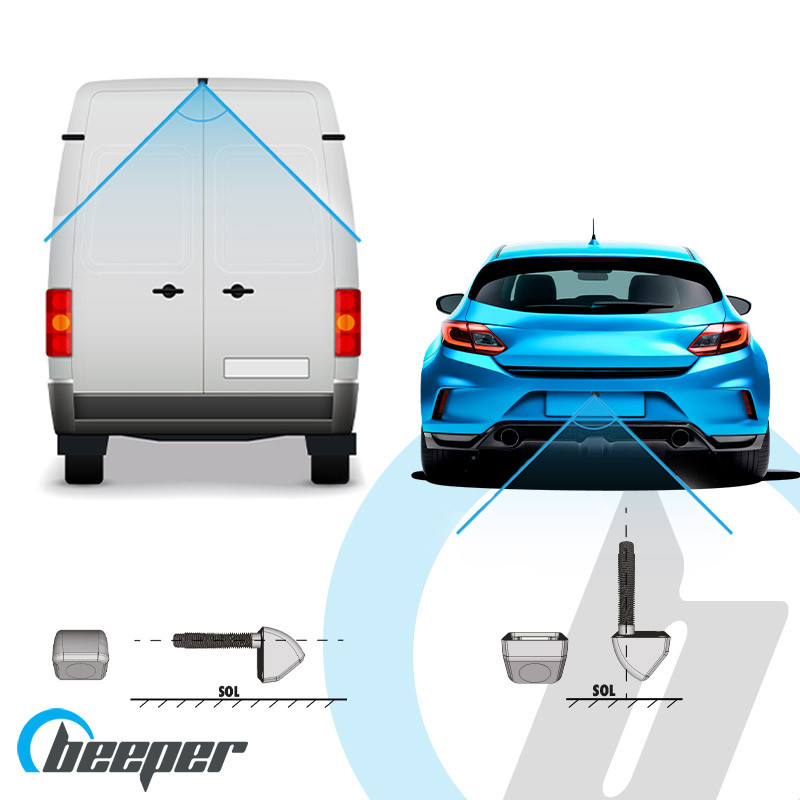

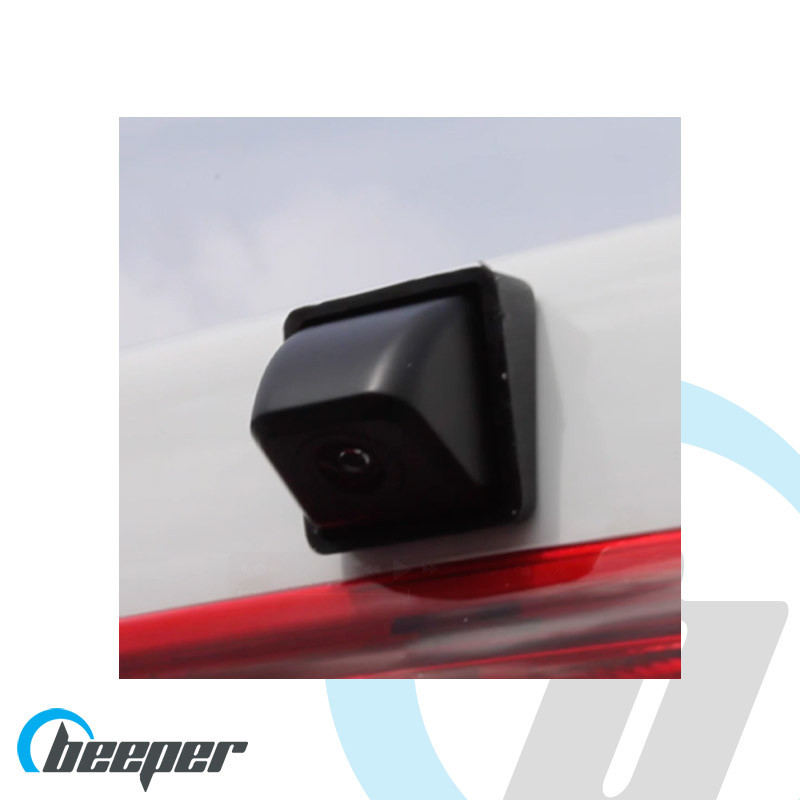

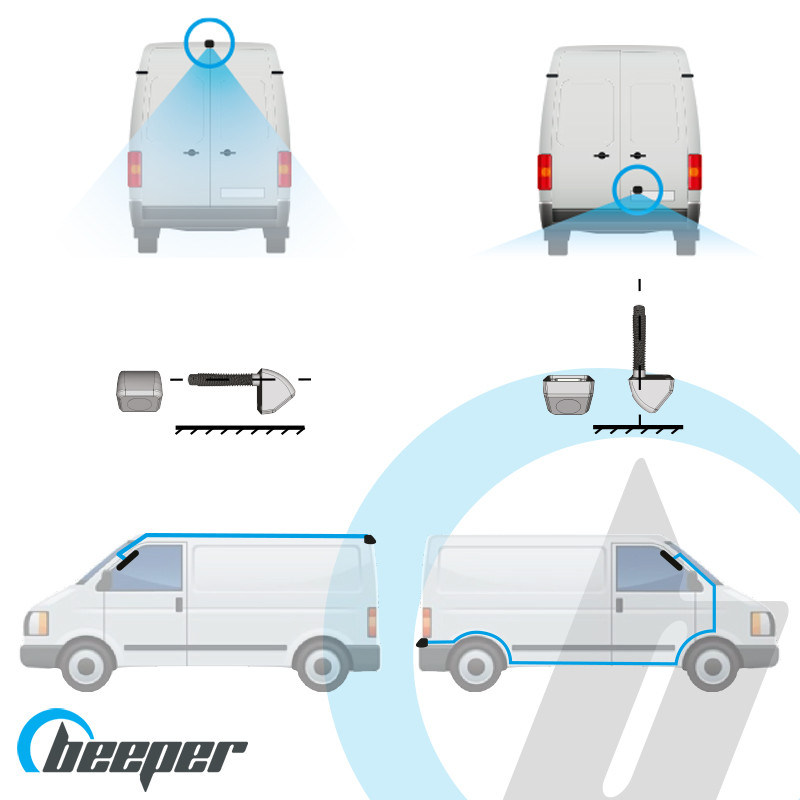

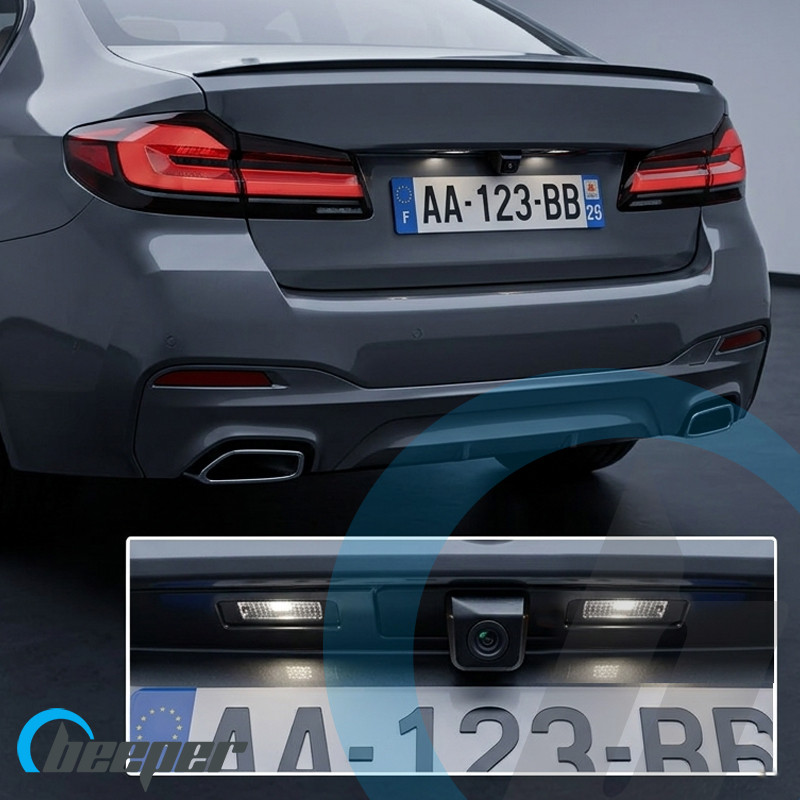

Installation of the camera

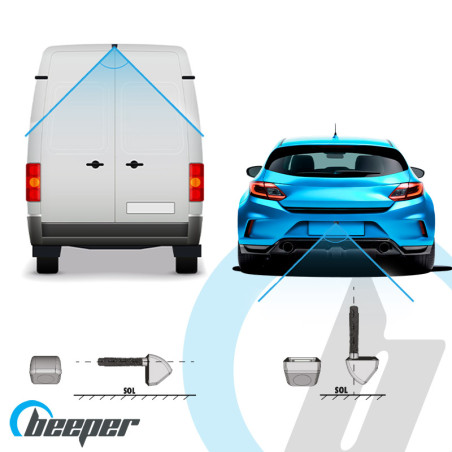

Bottom location : vertical camera Top slot : horizontal camera

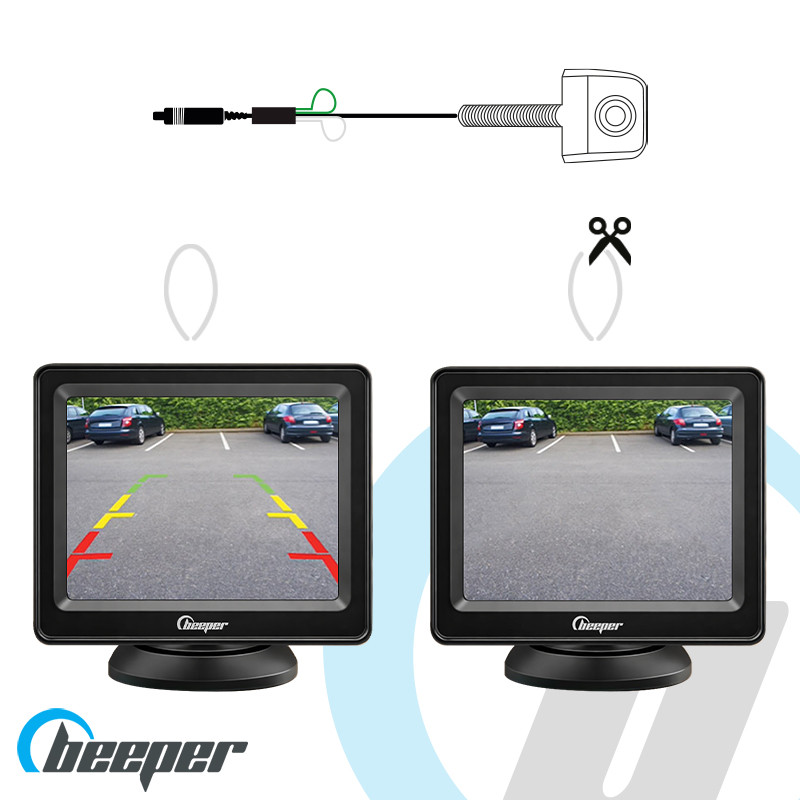

Distance visualisation templates

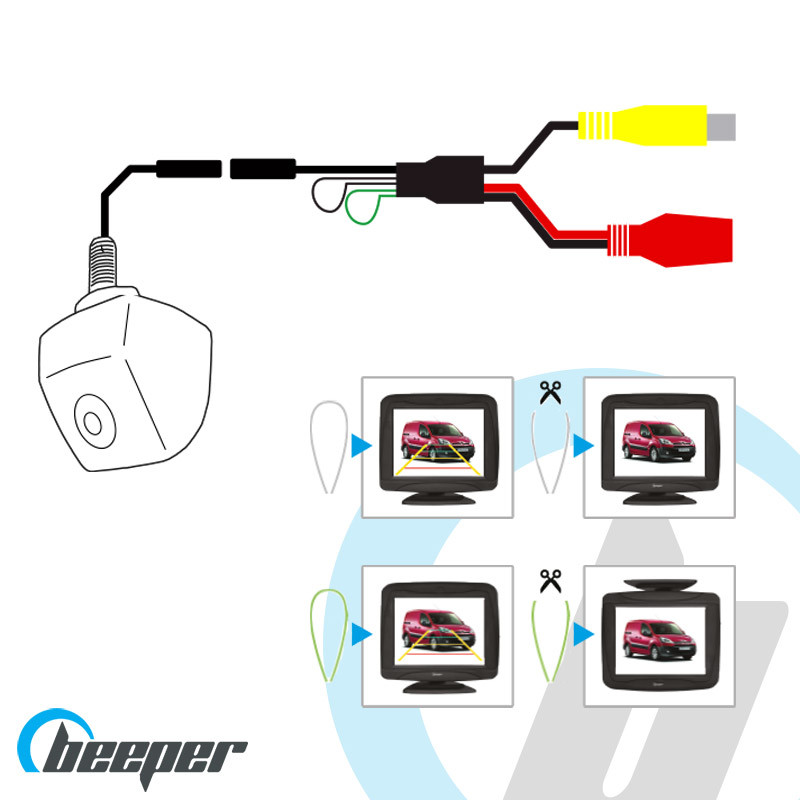

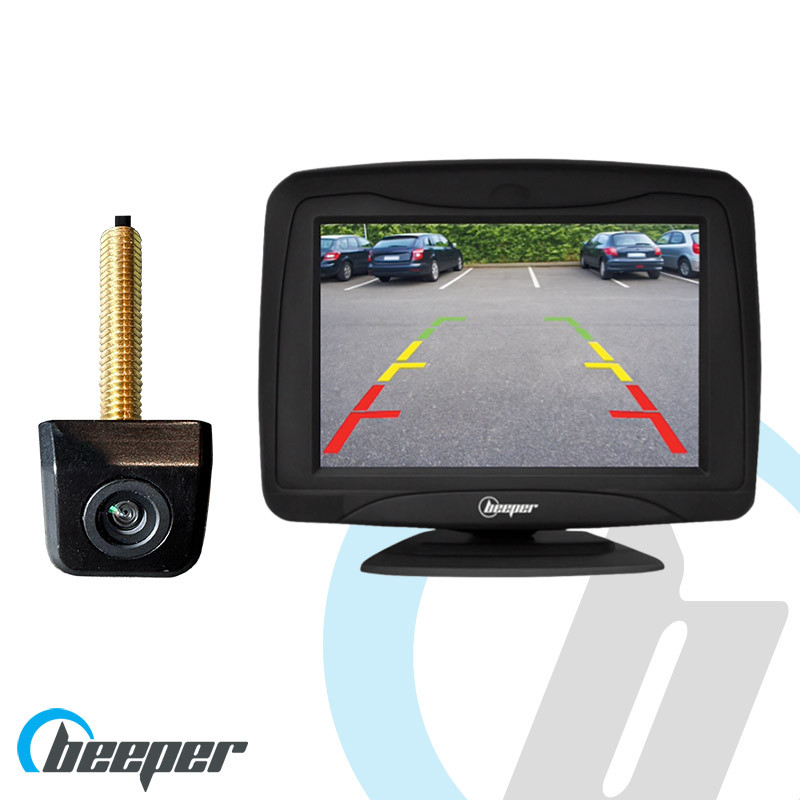

Distance visualization template lines appear on the screen, which allow the best evaluation of the distances between the vehicle and the obstacle. These template lines can be deactivated when the product is installed if desired.
Screen functions
- The top button (button 1) allows the image to be reversed from top to bottom.
- The lower button (button 2) allows the brightness to be adjusted.

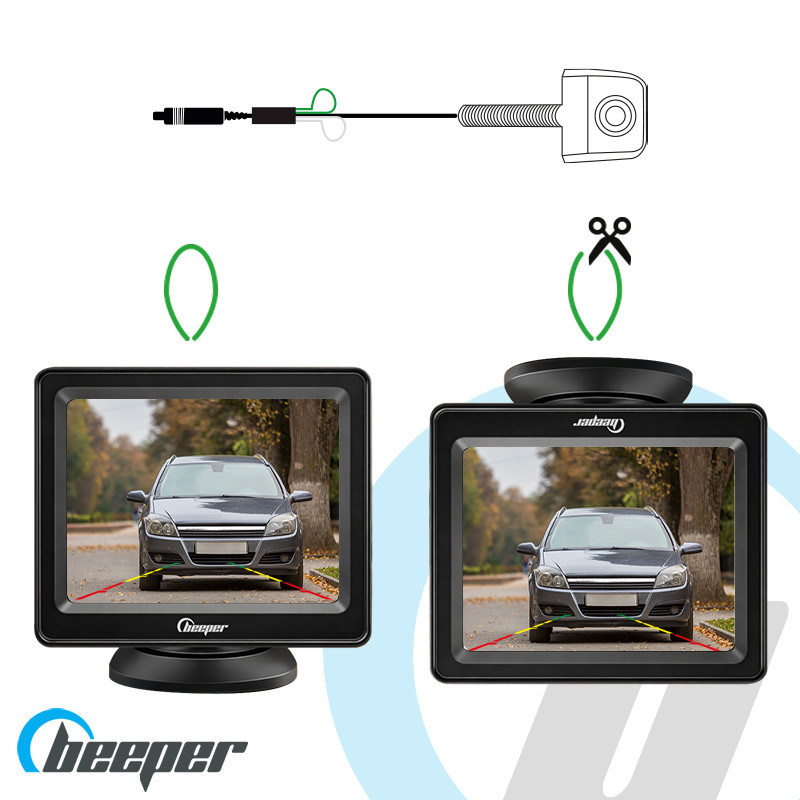

Image rotation
- rotation of the image from top to bottom possible
- Inversion of the image right-left or mirror effect : useful if the camera is moved to the front. This function is useful when installing or changing the position of the screen or camera.
The rear view also provides real safety in the event of a pedestrian or child passing behind the vehicle.
Even if the installation is universal and without complexity, we advise you to call in a professional in order not to damage your vehicle.
Thanks to the BEEPER RW037-P, parking becomes child's play.
WARNING • VEHICLES THAT DO NOT ALLOW AN APPLIANCE TO BE CONNECTED TO THE REVERSING LIGHT HARNESSOn certain vehicles the +12 V reversing light is interfered with when the engine is running which can disturb the correct operation of the reversing radar kit. In other cases, this +12 V reversing Light does not allow any additional appliance. For all these vehicles, Beeper has developed the RCANR2 module in order to retrieve the +12V Reversing Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and provides a +12V Reversing Light for the connection of a reversing camera. You will find this RCANR2 canbus module by clicking HERE
The BEEPER RW037-P is of course a complete kit, delivered with all the accessories necessary for the assembly, as well as a simple and clear assembly instructions.
