Reversing radar 4 white sensors & buzzer • RE002A/4-B

: RE002A/4-B

Neuf

ON-BOARD ELECTRONICS & ACCESSORIES / REVERSING RADAR / REVERSING RADAR

€65.00
Tax included
Description

The BEEPER RE002A/4-B is a simple and efficient parking aid system that alerts the driver when reversing. As parking has become an increasingly important daily constraint, the BEEPER RE002A/4-B will ensure your comfort and safety during each manoeuvre.

For increased comfort

The buzzer of the BEEPER RE002A/4-B can be placed in the boot or in the passenger compartment of the vehicle.

More security

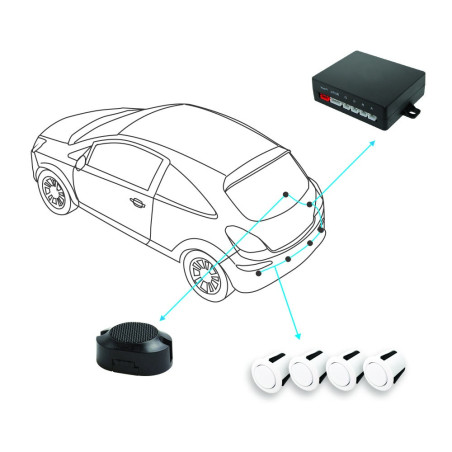

The BEEPER RE002A/4-B is equipped with 4 ultrasonic sensors for an optimal detection zone, so it detects all obstacles, reduces the risk of collisions and related repair costs. So you can feel confident when manoeuvring, exiting car parks, garages, etc...

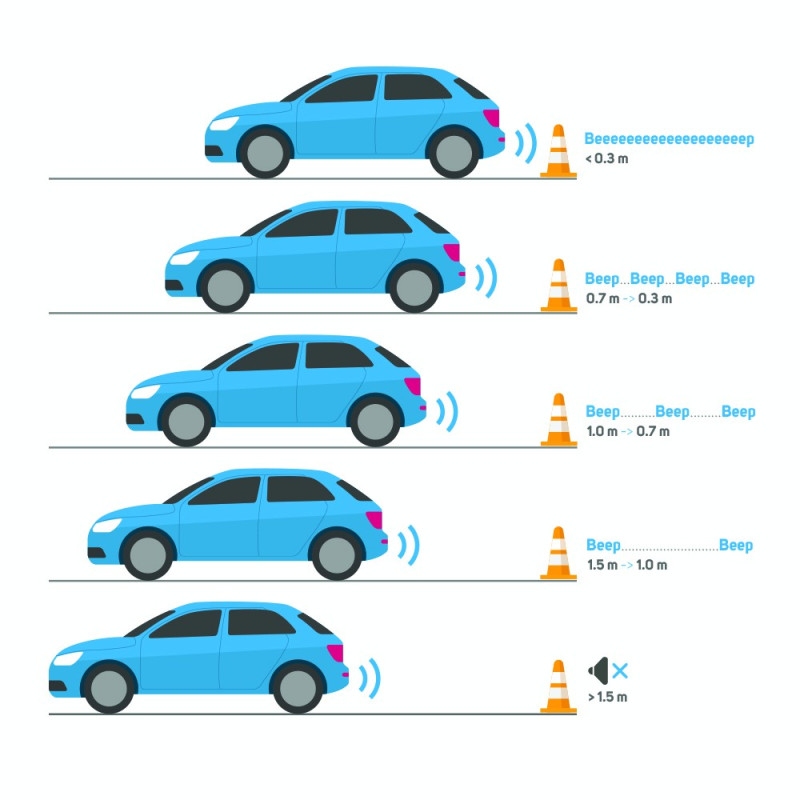

As soon as you engage reverse gear, the 4 sensors detect the presence of potential obstacles at the rear of the vehicle. As you approach an obstacle, the beeps get closer and closer. When the signal becomes continuous, your bumper is within 30 cm of this obstacle.

Main functions

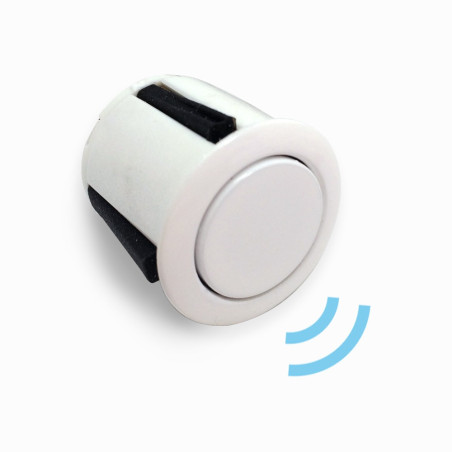

- 4 white ultrasonic sensors
- 6 warning levels
- Rear detection (from 1.5 m. to 30 cm)
- Progressive sound alert by BEEP
- Volume switch (mini/maxi)
- Sound alert buzzer in the boot
- Adjustable buzzer sound level
- Activation by reversing light

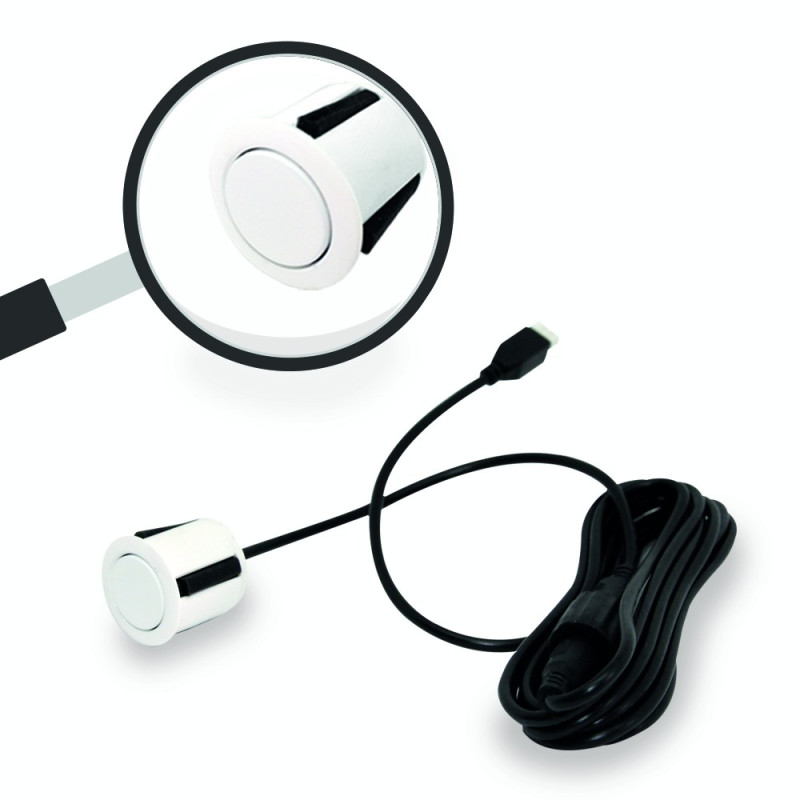

- 2.5 m of cable

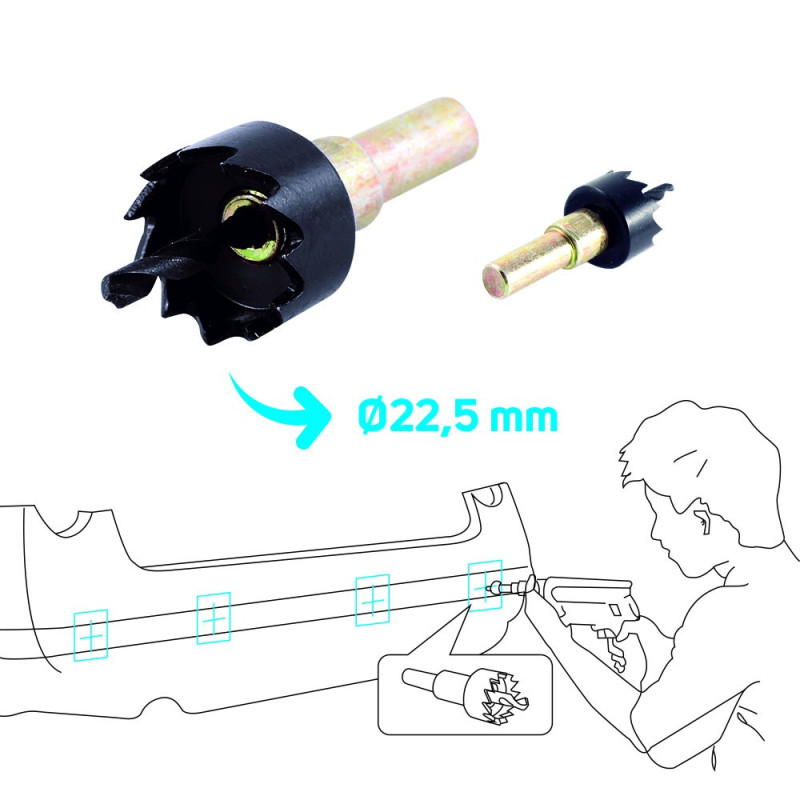

Installation of sensors

The sensors must be placed at least 50 cm from the ground. Indeed, sensors placed lower will detect the ground, which will cause unwanted triggers.

If you have a commercial vehicle, sports car or other vehicle with a lowered bumper, we have a solution for you. You have the possibility to order specific angled sensors that allow a lower installation; at 43cm from the ground. Access to the product sheet by clicking HERE.

The sensors can be covered with a veil of paint for a perfect finish.

WARNING • VEHICLES THAT DO NOT ALLOW AN APPLIANCE TO BE CONNECTED TO THE REVERSING LIGHT HARNESS
On certain vehicles the +12 V reversing light is interfered with when the engine is running which can disturb the correct operation of the reversing radar kit. In other cases, this +12 V reversing Light does not allow any additional appliance.
For all these vehicles, Beeper has developed the RCANR2 module in order to retrieve the +12V Reversing Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and provides a +12V Reversing Light for the connection of a reversing camera
You will find this RCANR2 canbus module by clicking HERE
Warning: product not compatible with a metal bumper

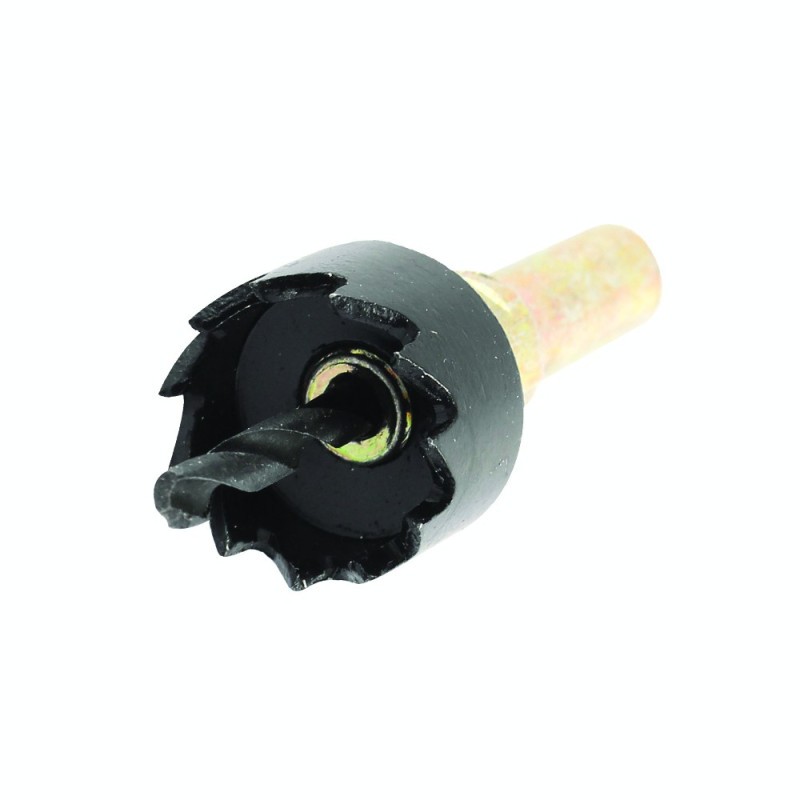

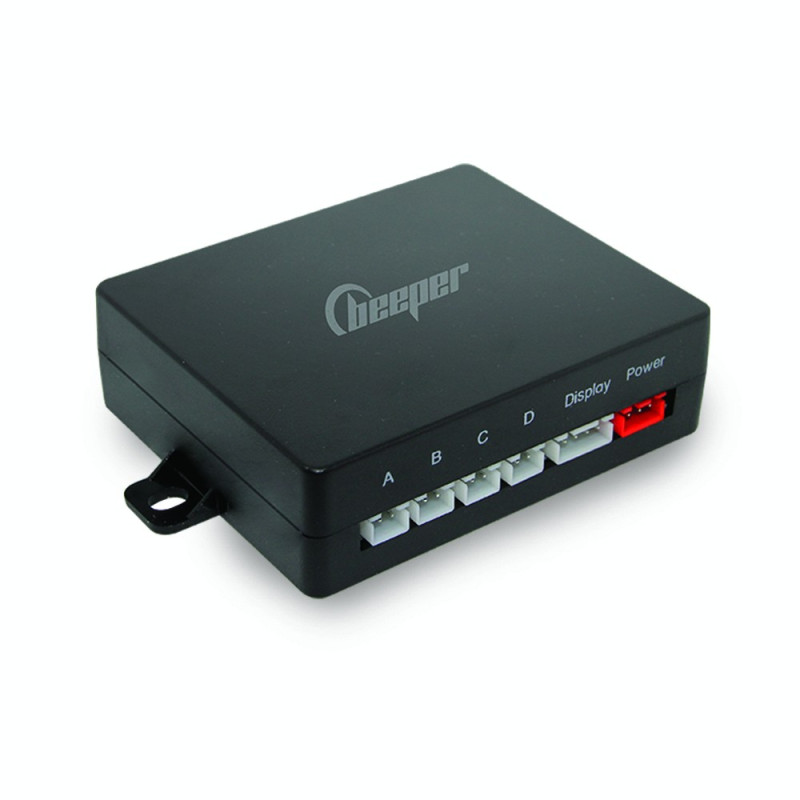

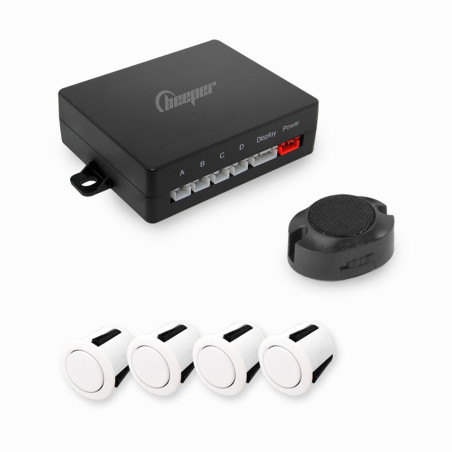

The BEEPER RE002A/4-B is of course a complete kit, delivered with all the accessories necessary for the assembly, as well as a simple and clear assembly instructions.

Beeper
RE002A/4-B
New
Display type
Without
Type of radar activation
Activation by reversing light
Sensors detection in centimetres
Rear detection 150-30cm
Weight (in kg)
1
Type of radar detection
Rear
Depth of the sensors
22 mm
Type of vehicle
Light vehicle
