Caméra de recul pour véhicules utilitaires • RVUX-C5N

Reversing camera for commercial vehicles • RVUX-C5N

: RVUX-C5N

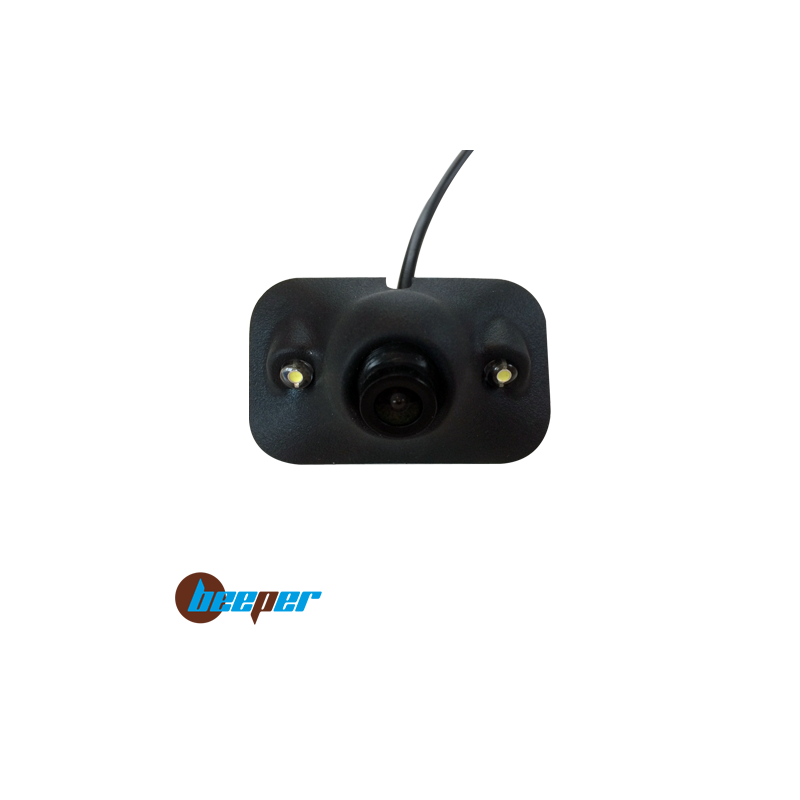

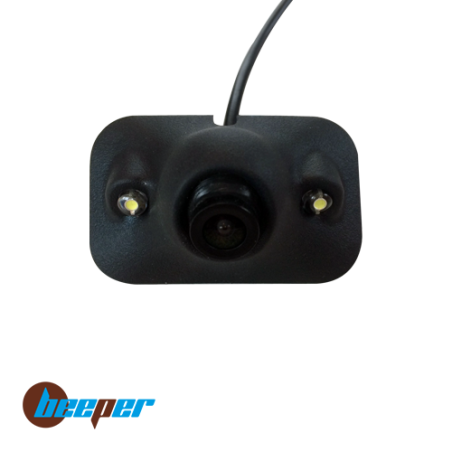

RVUX-C5N • 2 LED flexible micro-camera for commercial vehicles

€121.95
11 Items
Description

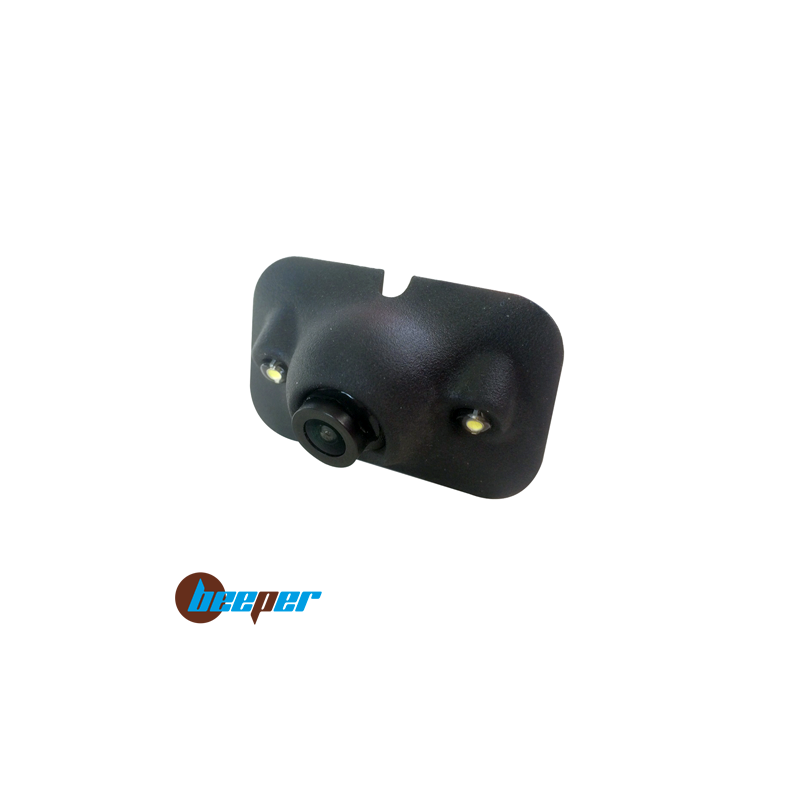

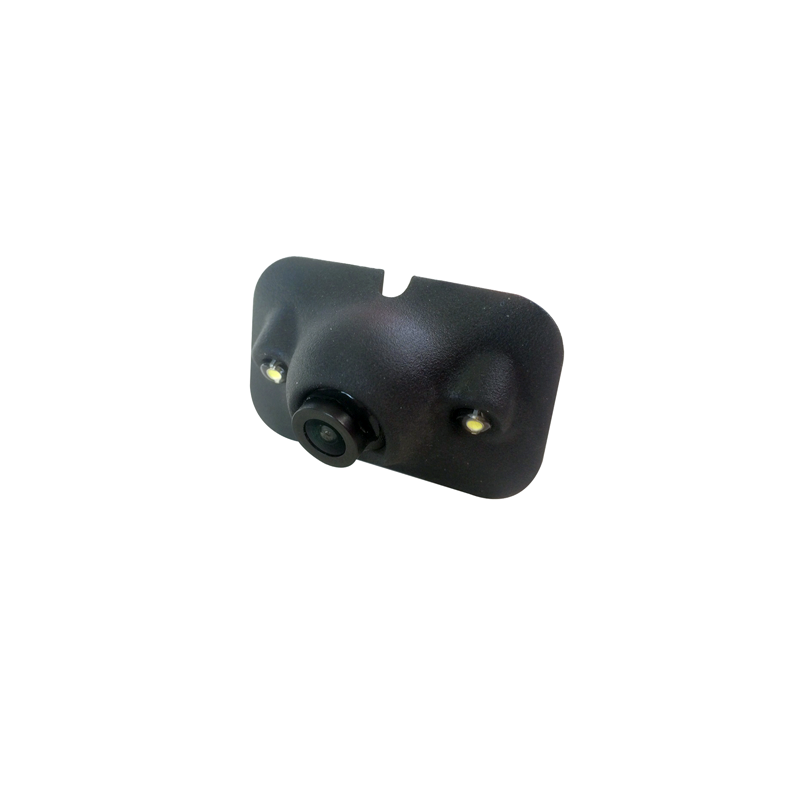

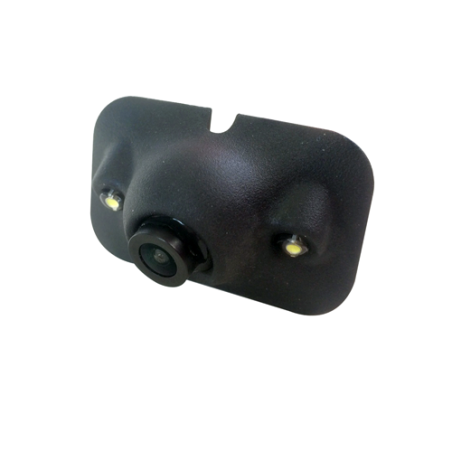

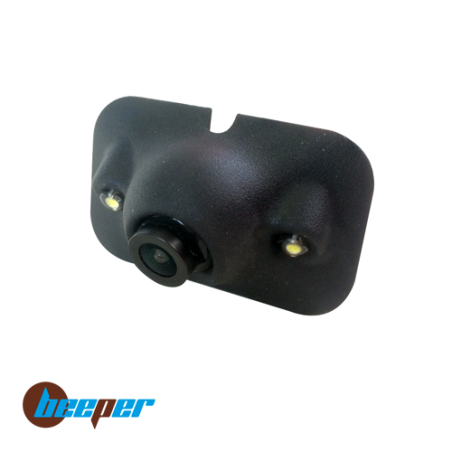

The BEEPER RVUX-C5N is a flexible micro camera ideal for commercial vehicles. Its compact size and soft plastic shell make it convenient to install and provides a reinforced seal that will stand the test of time and years.

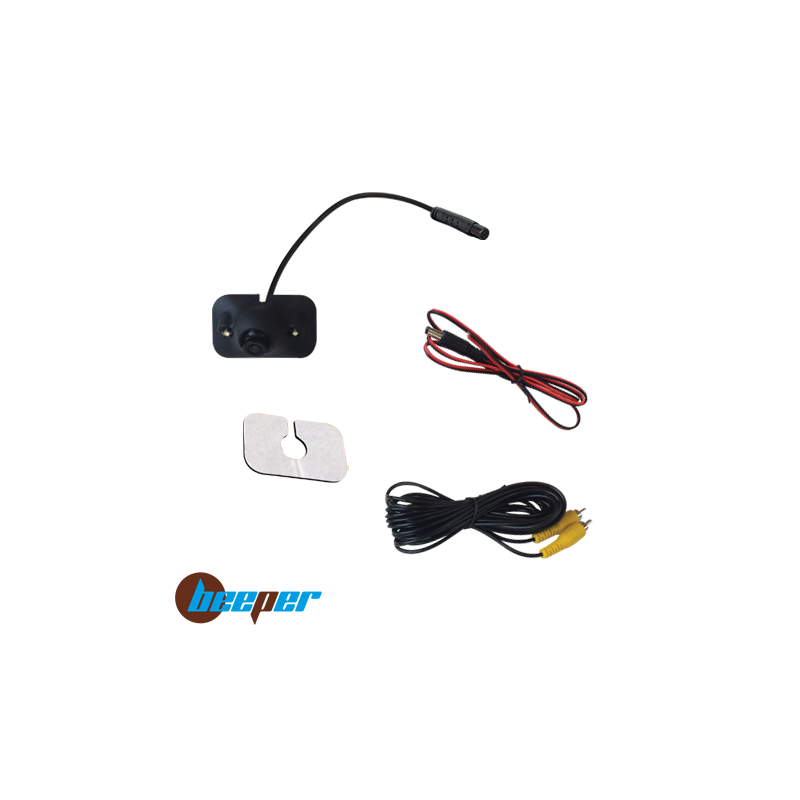

Kit composition

A. Flexible micro camera (x1)
B. Fixing adhesive for flexible camera (x1)
C. RCA connector (x1)
D. 12 m. extension cable (x1)
E. Tube of sealing mastic (x1)

Dimensions

The dimensions of the flexible micro camera are : 48 x 31 x 18 mm

Distances visualization templates

WHITE loop = reversing distances visualization TEMPLATES

WHITE loop closed = VISIBLE templates (selection of origin)
WHITE loop open (cut) = Templates NOT VISIBLE

/! The selection of this option is made with the camera not powered.

Note : The selection of origin made for a "horizontally" positioned camera, a screen fixed or glued from above & in reverse camera version (visible templates). To change the loop status, please disconnect the camera first, then reconnect it after the operation.

Installation of the camera on the vehicle

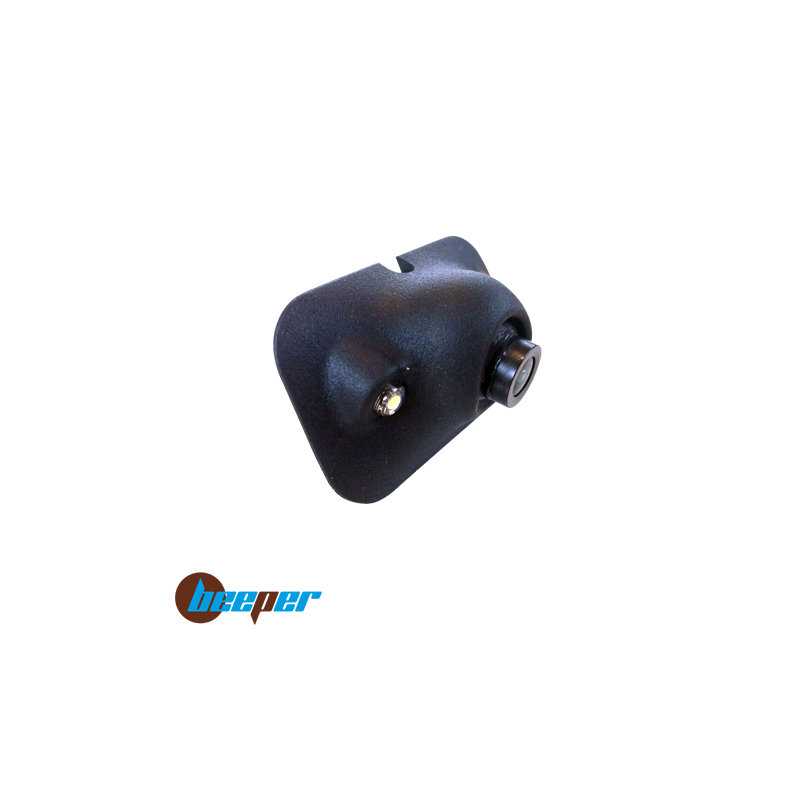

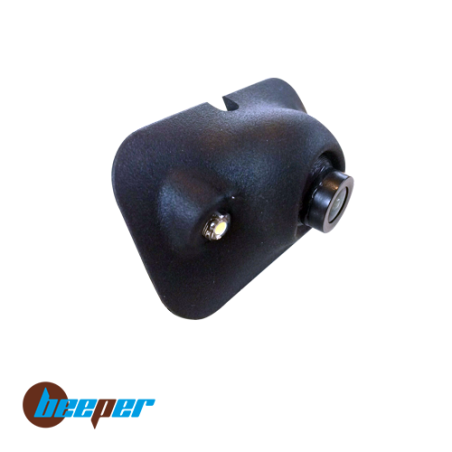

The adjustable angle of the camera allows you to position it in two different locations on the vehicle, depending on your choice or a technical constraint: on the top of the body (at the level of the upper brake light, see diagram A above) or on the bottom of the body (at the level of the plate light, see diagram B above).

/! If installing the camera vertically, be sure to fill the hole at the top with the mastic adhesive provided, in order to strengthen the sealing and thus prevent water from entering the vehicle by capillary action.

WARNING • VEHICLES THAT DO NOT ALLOW AN APPLIANCE TO BE CONNECTED TO THE REVERSING LIGHT HARNESS
On certain vehicles the +12 V reversing light is interfered with when the engine is running which can disturb the correct operation of the reversing radar kit. In other cases, this +12 V reversing Light does not allow any additional appliance.
For all these vehicles, Beeper has developed the RCANR2 module in order to retrieve the +12V Reversing Light information from the CANBUS network. This module connects to the CANBUS of the compatible vehicle and provides a +12V Reversing Light for the connection of a reversing camera.
You will find this RCANR2 canbus module by clicking HERE

The BEEPER RVUX-C5N is of course a complete kit, delivered with all the accessories necessary for the assembly, as well as a simple and clear assembly instructions.
11 Items
RVUX-C5N
Guarantee
2 years
Waterproof index
IP67
vision angle
140°
Night vision
0 lumens with LEDs (3 lumens with LEDs)
Camera storage temperature
-30°C / +60°C
Camera dimensions
48 x 31 x 18 mm
Weight in kilos
0.75 kg
Power supply
12V
Operating temperature of the camera
-20°C / +60°C
Resolution
510x492 px
Type of vehicle
Light vehicle
Professional vehicle
Recreational vehicle
